CP15

CLUB POWER SERIES

Key Features

Speaker Power Capability
• 550W / Peak 1700W (8Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 130dB

Coverage
• 90° (H) x 40°(V)

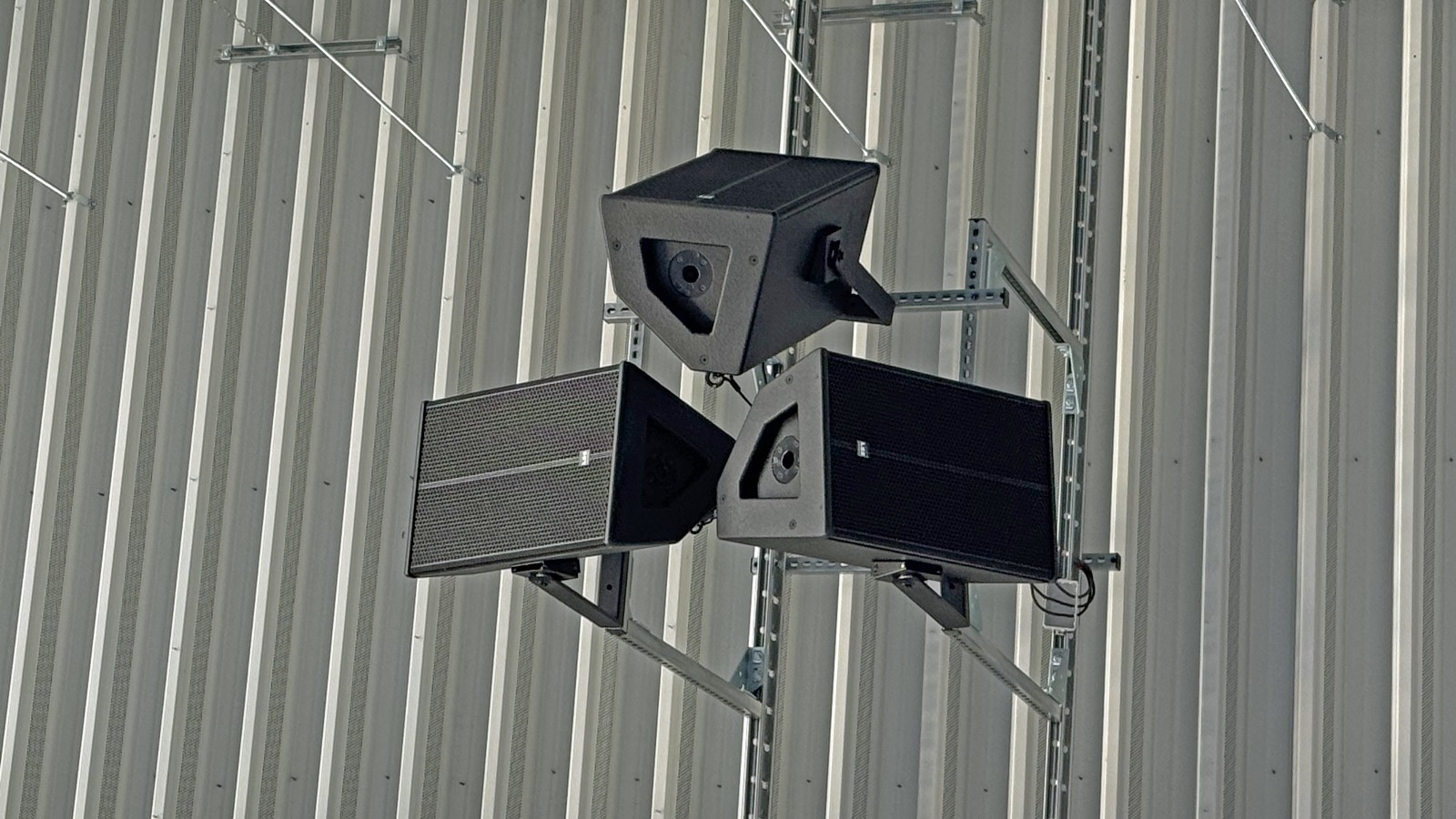

CP15 is a multi-function compact loudspeaker for mobile and fixed installation applications, especially where high SPL is needed. CP15 can be used for main PA system or as a floor monitor.
SKU: CP15
Product ID: 54044

Application

15″ LF Ferrite transducer and a 1.5″ compression driver on rotatable horn produces a maximum output of 130dB SPL. The extraordinary power handling capability of this system means that it can comfortably and reliably reproduce a range of program setups with very low distortion and power compression. The pilotage need only one amplifier channel, the frequency splitting being accomplished by the low-loss passive filter passive crossover network inside the enclosure engineered manufactured with top grade components, including coils with very low resistance and metalized polypropylene capacitors. It also features circuitry to protect the HF component against excessive current and voltage. The cabinet is from Baltic birch features craftsmanship protected by and epoxy power coated, resonance-free steel grill over acoustically transparent foam. Every cabinet is coated with a high-tech black textured polywater scratch free finish and custom RAL is possible on request. The system includes mounting hardware, compatible with various separately available mounting brackets.

Performance

Frequency Response
• -10dB 45Hz to 20KHz

Maximum SPL Output Caculated
• 130dB

Nominal Input Impedance (ohms)
• Full Range Passive 8Ω

Power Handling (watts cont. AES)
• 550W / Peak 1700W

Coverage
• 90° (H) x 40°(V)

Physical

Dimensions mm (±1 mm)
• 684(H) x 423(W) x 418(D)mm

Weights
• Net Weight 25kg

Enclosure Material
• Component Low 15” woofer
• Component High 1.5” diaphragm compression driver
• Loading Low Bass-reflex
• Loading High 1″ Rotatable Horn
• Connectors 2 x NL4 PAR Pins 1+/1-
• Cabinet Material Baltic birch plywood
• Cabinet Finish Black polywater coating
• Grill Epoxy powder coated
• Installation Points 8 x M8
• Pole Mount 35 mm socket
