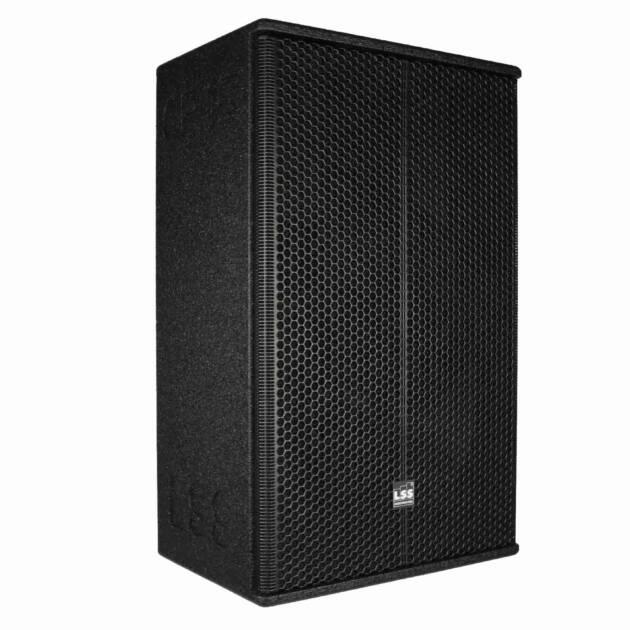

CP12

CLUB POWER SERIES

Key Features

Speaker Power Capability
• 380W / Peak 575W (8Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 128dB

Coverage
• 90° (H) x 40°(V)

CP12 is a multi-function loudspeaker very compact for mobile and fixed installation applications, especially where high SPL needed CP12 is ideally for main PA system alone or coupled with a LSS subwoofer. Possible also to use as a floor monitor.
SKU: CP12
Product ID: 54043

Application

12″ LF transducer and a 1.5″ HF driver on rotable horn produce a maximum output of 128dB SPL. The system will comfortably exceeds most comparable devices performance. The extraordinary power handling capability of this system means that it can comfortably and reliably reproduce a range of program setup with very low distortion and power compression. CP12 is ideally for main PA system alone or coupled with a LSS subwoofer. Possible also to use as a floor monitor.
The pilotage need only one amplifier channel, the frequency splitting being accomplished by the low-loss passive filter crossover network inside the enclosure engineered and manufactured with top grade components, including coils with very low resistance and metalized polypropylene capacitors. It also features circuitry to protect the HF component against excessive current and voltage. The cabinet is from Baltic birch features craftsmanship protected by an epoxy powder coated, resonance-free steel grill over acoustically transparent foam. Every cabinet is coated with a high-tech black textured polwater scratch free finish and custom RAL is possible on request. The system includes mounting hardware, compatible with various separately available mounting brackets.

Performance

Frequency Response
• -10dB 60Hz to 22KHz
Sensitivity (dB 1 mt.)
• MAX SPL Output Calculated 128dB SPL
Nominal Input Impedance (ohms)
• Full Range Passive 8Ω
Power Handling (watts cont. AES)
• 380W / Peak 1075W
Coverage
• 90° (H) x 40°(V)

Physical

Dimensions mm (±1 mm)
• 600(H) x 390(W) x 354(D)mm

Weights
• Net Weight 19kg

Enclosure Material
• Component Low 12” woofer
• Component High 1.5” diaphragm compression driver
• Loading Low Bass-reflex
• Loading High 1″ Rotatable Horn
• Connectors 2 x NL4 PAR Pins 1+/1-
• Cabinet Material Baltic birch plywood
• Cabinet Finish Black polywater coating
• Grill Epoxy powder coated
• Installation Points 8 x M8
• Pole Mount 35 mm socket
