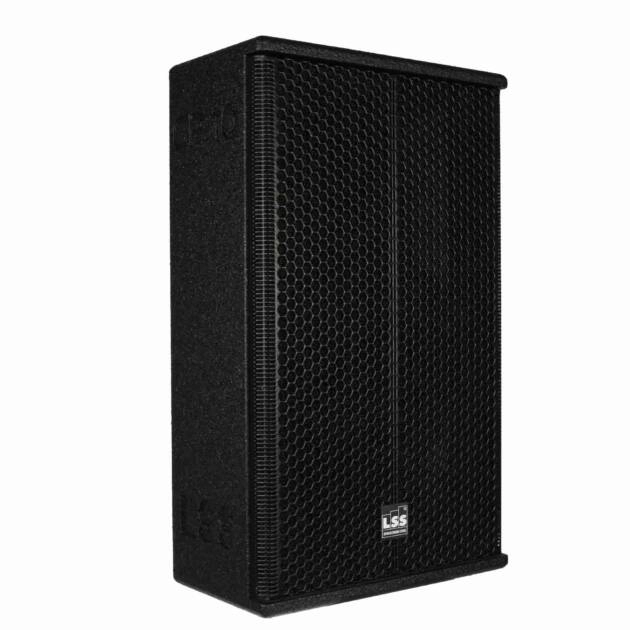

CP10

CLUB POWER SERIES

Key Features

Speaker Power Capability
• 300W / Peak 850W (8Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 126dB
Coverage
• 90° (H) x 40°(V)

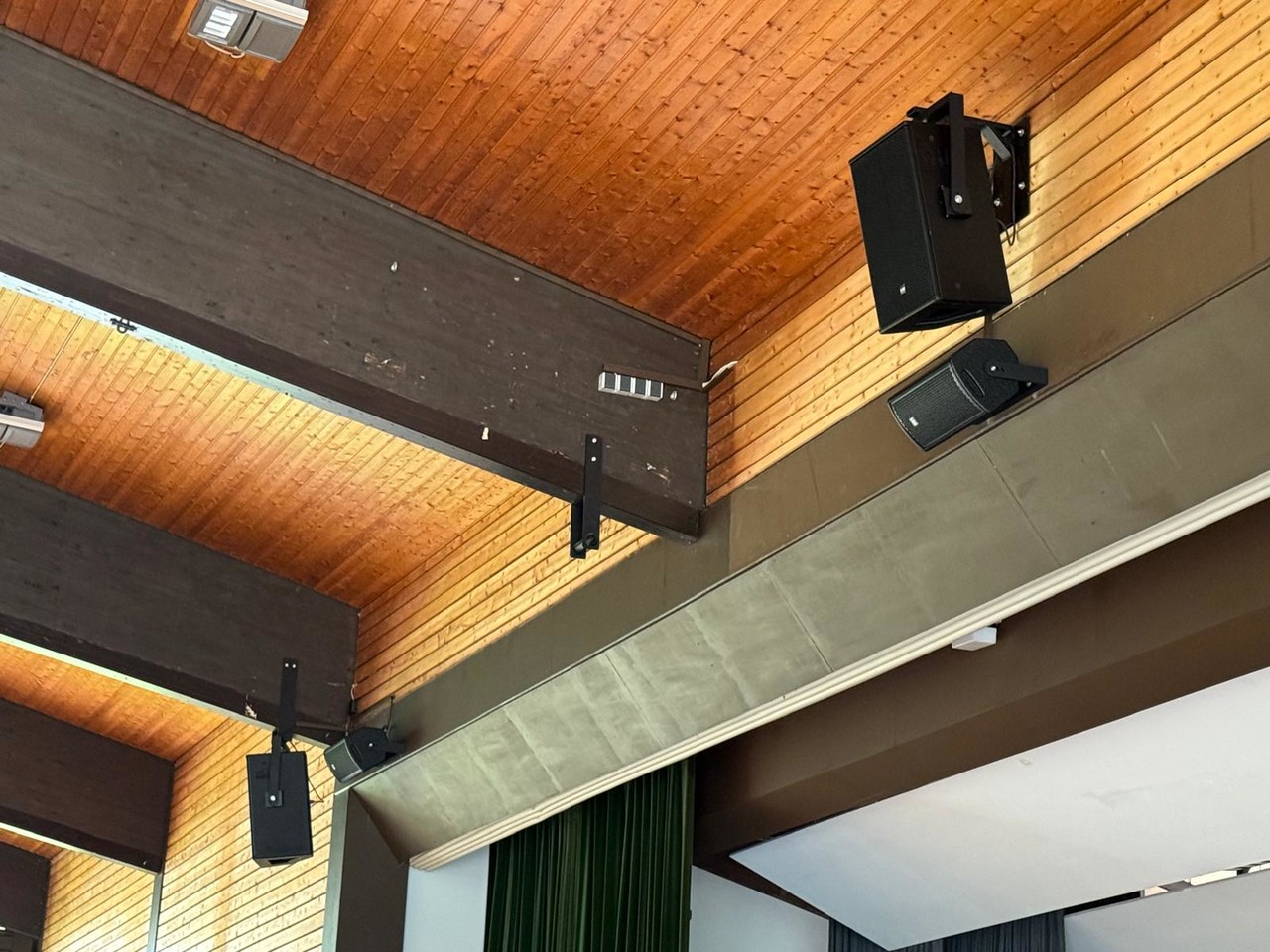

CP10 is a multi-function compact loudspeaker for mobile and fixed installation applications, especially where high SPL is needed. CP10 can be used for main PA system or as a floor monitor.
SKU: CP10
Product ID: 54042

Application

A Ferrite 10″ LF transducer and a 1.5″ HF driver on rotable horn produce a maximum output of 126dB SPL, the unit exceed most performance comparable devices. The extraordinary power handling capability of this system means that it can comfortably and reliably reproduce a range of program setup with very low distortion and power compression. The pilotage need only one amplifier channel the frequency enclosure engineered and manufactured with top grande components, including coils with very low resistance and metalized polypropylene capacitors. It as features circuitry to protect the HF component against excessive current and voltage. The cabinet is from Baltic birch features craftsmanship protected by an epoxy power coated, resonance-free steel grill over acoustically transparent foam. Every cabinet is coated with a high-tech black textured polwater scratch free finish and custom RAL is possible on request. The system includes mounting hardware, compatible with various separately available mounting brackets.

Performance

Frequency Response
• -10dB 50Hz to 20KHz
Sensitivity (dB 1 mt.)
• MAX SPL Output Calculated 126dB SPL
Nominal Input Impedance (ohms)
• Full Range Passive 8Ω
Power Handling (watts cont. AES)
• 300W / Peak 850W
Coverage
• 90° (H) x 40°(V)

Physical

Dimensions mm (±1 mm)
• 530(H) x 330(W) x 307(D)mm

Weights
• Net Weight 15kg

Enclosure Material
• Component Low 10” woofer
• Component High 1.5” diaphragm compression driver
• Loading Low Bass-reflex
• Loading High 1″ Rotatable Horn
• Connectors 2 x NL4 PAR Pins 1+/1-
• Cabinet Material Baltic birch plywood
• Cabinet Finish Black polywater coating
• Grill Epoxy powder coated
• Installation Points 8 x M6
• Pole Mount 35 mm socket
