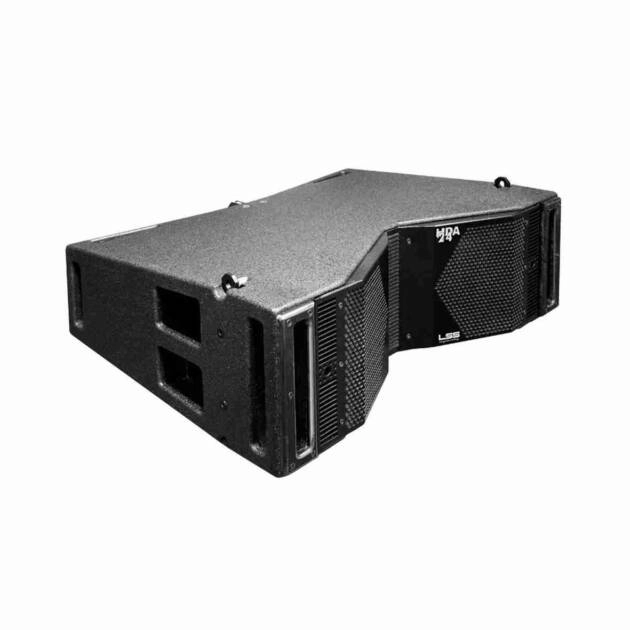

HDA24
HIGH DEFINITION LINE ARRAY SPEAKER
Key Features
Speaker Power Capability
• LF 600W / Peak 2400W (16Ω)
• HF 110W / Peak 440W (16Ω)
Sensitivity(@ 1m)
• LF MAX SPL(Calculated) 128dB
• HF MAX SPL(Calculated) 126dB
Coverage
• 120° (H) x 9°(V)

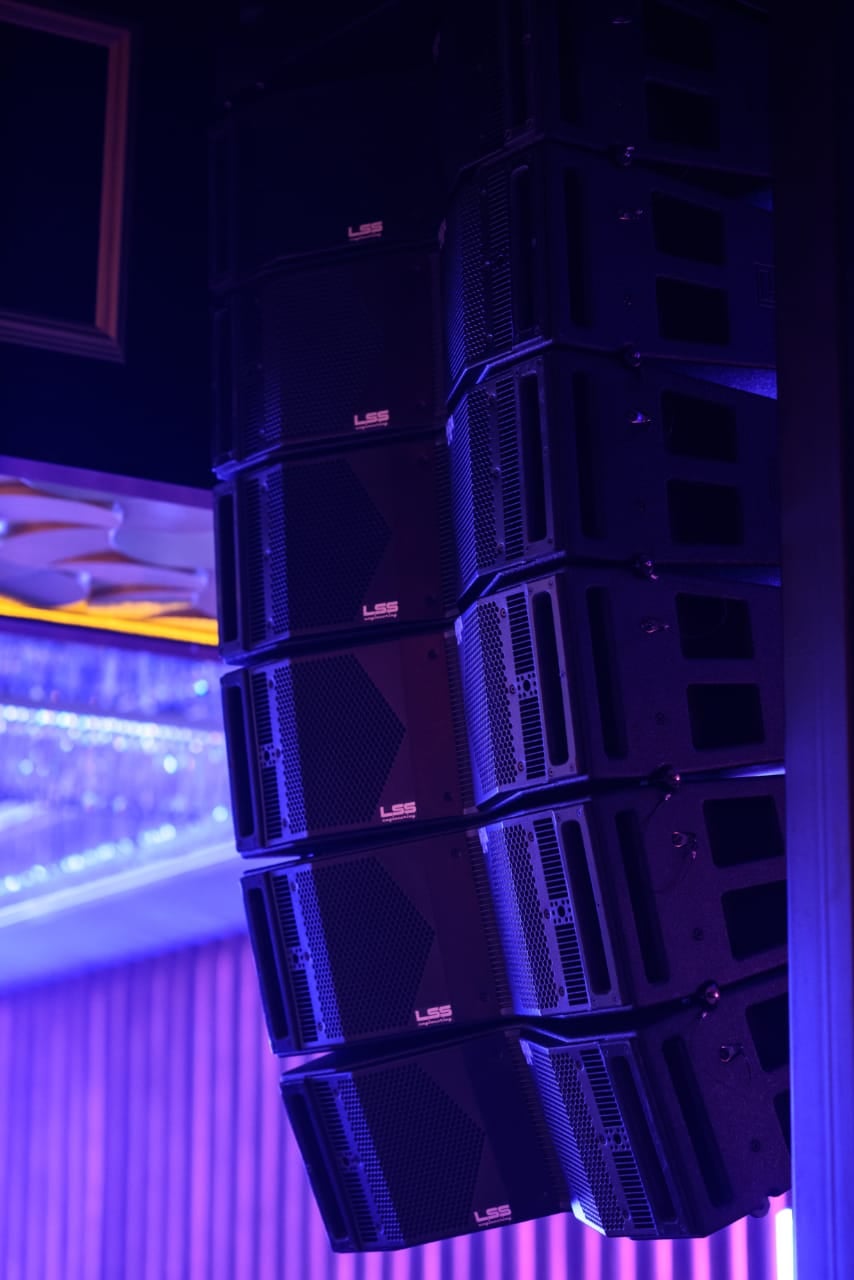

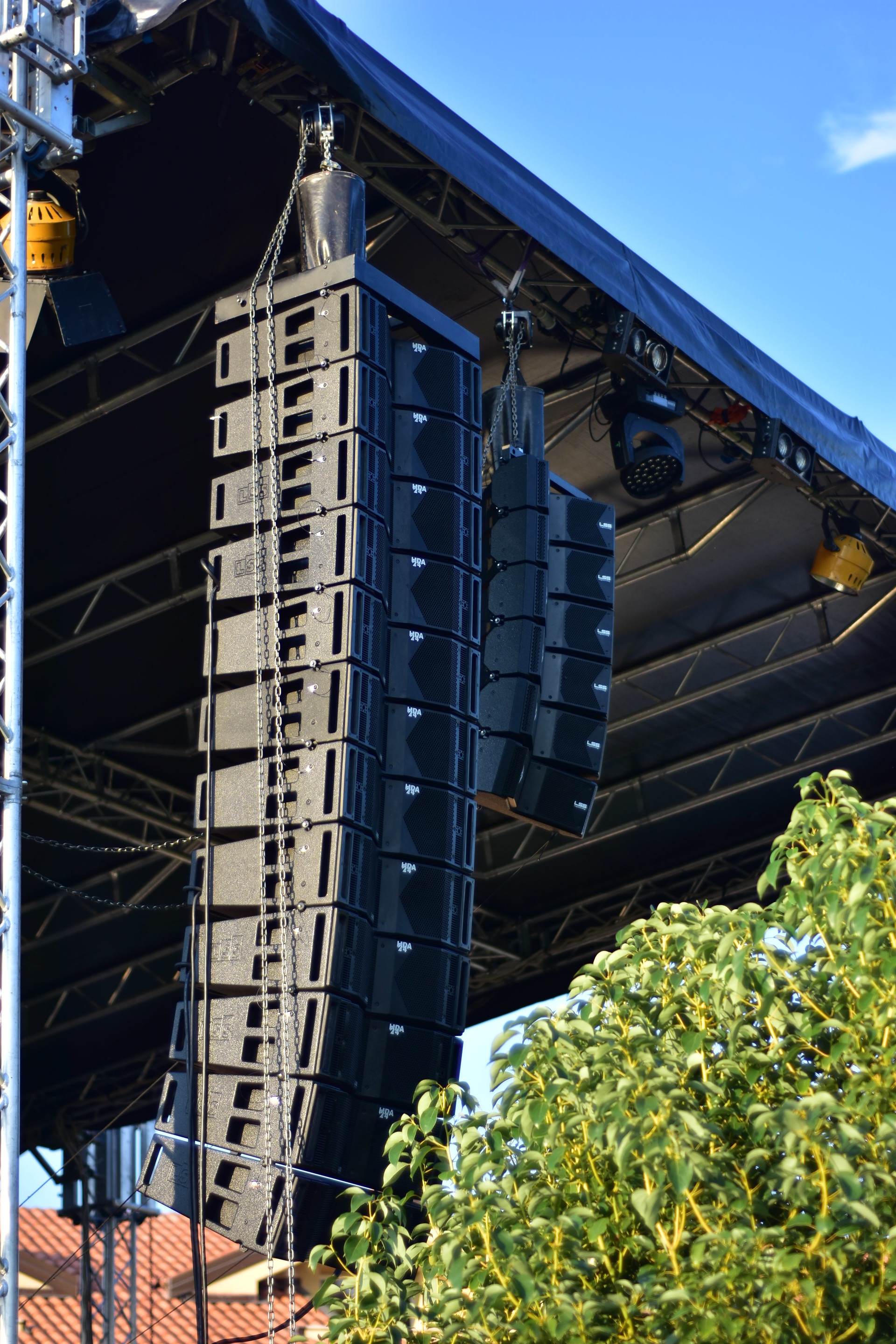

The HDA24 was designed to support the widest possible range of pro audio applications. It is ideal for vertical curvilinear array systems, the minimum configuration of this system is four enclosures, for full performance eight or more are recommended. HDA24 2-Way loudspeaker system provides high output, low distortion sound reinforcement for the entire range of pro audio applications.
The 200 mm (8″) low frequency cone with 51 mm (2″) voice coil with Neodymium magnet and 75 mm (3″) voice coil high frequency compression driver provides higher output and lower distortion plus enhanced power handling capabilities for better performance in both touring and permanently installed applications. LSS’s HDA24 is designed specifically for vertical curvilinear array.
SKU: HDA24
Product ID: 54031
Application
We accept var• Dual 8″ LF Neodymium in Vented Enclosure
• 1,4″ Titanium Driver (3’’ VC) on Wave Guide
• Fly Mounting Hardware Included
• Powering Mode: 2-Way with external Digital Processor and External Amplifier
• On request Full Range with Passive Crossover
• For Touring or Fixed Installationious payment methods, including credit/debit cards, PayPal, and bank transfers. At checkout, you will have the option to choose your preferred payment method.
Performance
Frequency Response
• ±3 dB 50Hz to 18KHz
• -10 dB 45Hz
Sensitivity (dB 1 mt.)
• LF 96dB / MAX SPL(Calculated) 132dB
• HF 103dB / MAX SPL(Calculated) 132dB
Nominal Input Impedance (Ohms)
Full Range Passive 16
LF 16
HF16
Power Handling (Watts cont. AES)
• LF 600W / Peak 2400W (16Ω)
• HF 110W / Peak 440W (16Ω)
Nominal Dispersion (@ – 6 dB)
• 120° (H) x 9°(V)
ADDITIONAL DATA
• Product Series AR
• LF Subsystem & Loading One 200 mm (8″) woofer vented
• HF Subsystem & Loading One 75 mm (3″) exit/50mm (2″) voice coil
• Operating Mode Passive Full-Range or BI-AMP with external Digital Processor and External Amplifier
Physical
Dimensions mm (±1 mm)
• 240(H) x 700(W) x 540(D)mm
Weight
• Net Weight(including flying hardware) 23kg
Costruzione e finitura
• Enclosure material: Birch Plywood of 15mm
• Finish: Texture poliuretanic black paint
• Suspension: 8 point mounting suspension
• Grille: Powder coated perforated steel
• Connectors: Two Neutrik NL4 Speakon
• Optional Accessories: Flight Case for four HDA24
