Key Features

Speaker Power Capability
• 510W / Peak 2040W (16Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 129dB

Coverage
• 120° (H) x 9°(V)

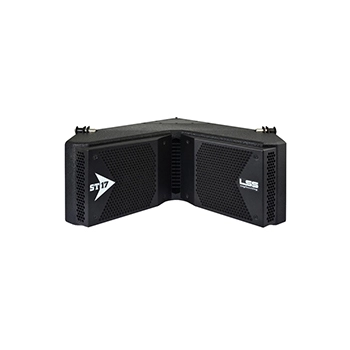

ST17 2-way loudspeaker system provides high output, low distortion sound reinforcement for the entire range of pro audio applications. The 152 (6″) mm low frequency cone with 45 mm (1.75″) voice coil with Neodimnyum magnet and 75 mm (3″) voice coil high frequency compression driver provides higher output and lower distortion plus enhanced power handling capabilities for better performance in both touring and permanently installed applications. LSS’s ST17 is designed specifically for vertical curvilinear array.

SKU: ST17
Product ID: 54029

Application

The ST17 is a micro module of Array System ideal for Vertical Line Array without compromises, ST 17 was designed to support the widest possible range of pro audio applications. It is ideal for vertical curvilinear array systems, the minimum configuration of this system is four enclosures for full performance eight or more are recommended. For extended low Frequency is possible used a subwoofer of LSS systems.
• Two 152mm LF Neodimnyum in vented enclosure
• 75mm Neodmyum Driver on Wave Guide 120°x 9°
• Fly mounting points
• Powering mode Full-range or BIAMP (With internal passive crossover)
• For touring or fixed installation

Performance

Frequency Response
• ±3 dB 75Hz to 18KHz
•-10 dB 58Hz

Sensitivity (dB 1 mt.)
• SPL (PEAK) 129

Nominal Input Impedance (ohms)
• Full Range Passive 16

Power Handling (watts cont. AES)
• W (AES) 510

Max SPL Output Calculated
• 129dB SPL

Nominal Dispersion (degrees @ – 6 dB)
• 120°(H) x 9°(V)

ADDITIONAL_DATA
Serie Prodotto STEALTH
• LF Subsystem & Loading Two 152mm woofer vented
• HF Subsystem & Loading One 75mm exit/50mm voice coil
• Operating Mode Passive Full-Range or BI-AMP (with Internal crossover)
