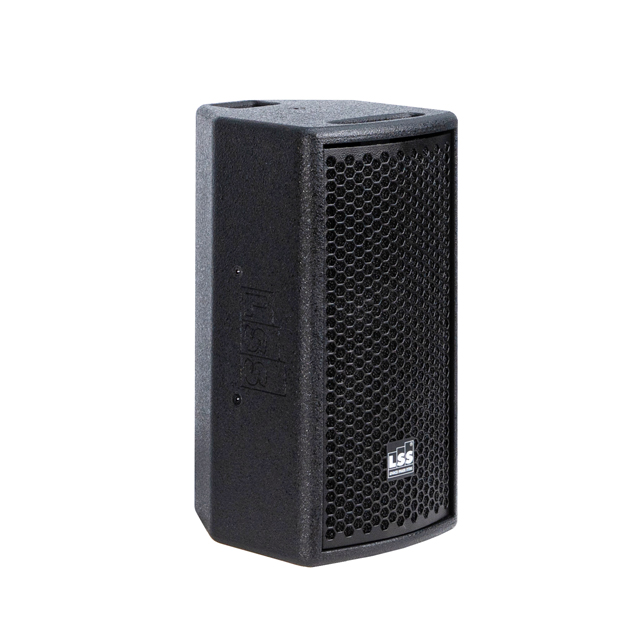

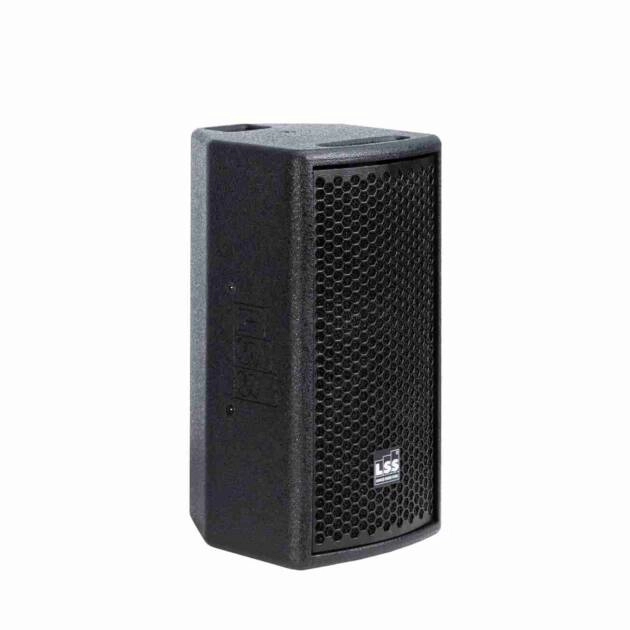

MAGMA6

EXTREMELY COMPACT LOUDSPEAKER

Key Features

Speaker Power Capability
• 250W / Peak 575W (16Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 121dB

Coverage
• 90° (H) x 40°(V)

Magma6 is revolutionary 6.5″ multi-function  loudspeakers ideally  for mobile and fixed installation applications, especially where high  SPL is needed. Magma can be used for main PA system or as a floor monitor.
SKU: M6
Product ID: 54037

Application

Magma 6 is a multi-function very small loudspeaker for mobile and fixed installation applications, especially where high SPLs needed. Magma 6 can be used as a mini floor monitor. A 6.5” LF transducer and a 1.4” HF driver on rotable horn produce a maximum output of 121 dB SPL, the unit exceed most performance comparable devices.The extraordinary power handling capability of this Magma system means that it can comfortably and reliably reproduce a range of program setup with very low distortion and power compression. The pilotage need only one amplifier channel the frequency splitting being accomplished by the low-loss passive filter passive crossover network inside the enclosure manufactured with top grade components, including coils with very low resistance and metalized polypropylene capacitors.It also features circuitry to protect the HF component against excessive current and voltage. Personalized setup avilable for Powersoft sytem amplifier, The cabinet is from Baltic birch features craftsmanship protected by an epoxy powder coated, resonance-free steel grill over acoustically transparent foam. Every cabinet is coated with a high-tech black textured polwater scratch free finish and custom RAL is possible on request.The system includes mounting hardware, compatible with various separately available mounting brackets.

Performance

Frequency Response
• -10dB 70Hz to 22KHz

Max SPL Output Calculated
• 121dB

Nominal Input Impedance (ohms)
• Full Range Passive 16Ω

Power Handling (watts cont. AES)
• 250W / Peak 575W

Coverage
• 90° (H) x 40°(V)

Physical

Dimensions mm (±1 mm)
• 390(H) x 200(W) x 210(D)mm

Weights Kilograms• Net Weight 6.8kg

Enclosure Material
• Component Low 6.5” woofer
• Component High 1.4” diaphragm compression driver
• Loading Low Bass-reflex
• Loading High 1” Rotable Horn
• Connectors 4 x NL4 PAR Pins 1+/1-
• Cabinet Material Baltic birch plywood
• Cabinet Finish Black polywater coating
• Grill Epoxy powder coated
• Installation Points 8 x M6
• Pole Mount 35 mm socket
