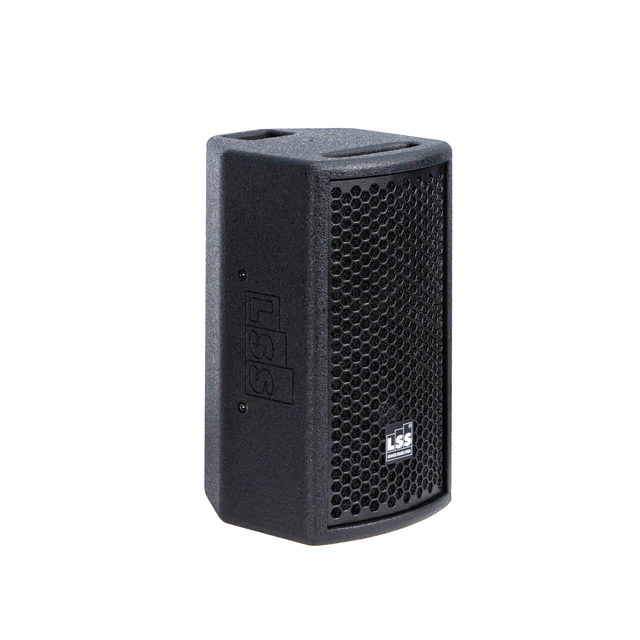

MAGMA5

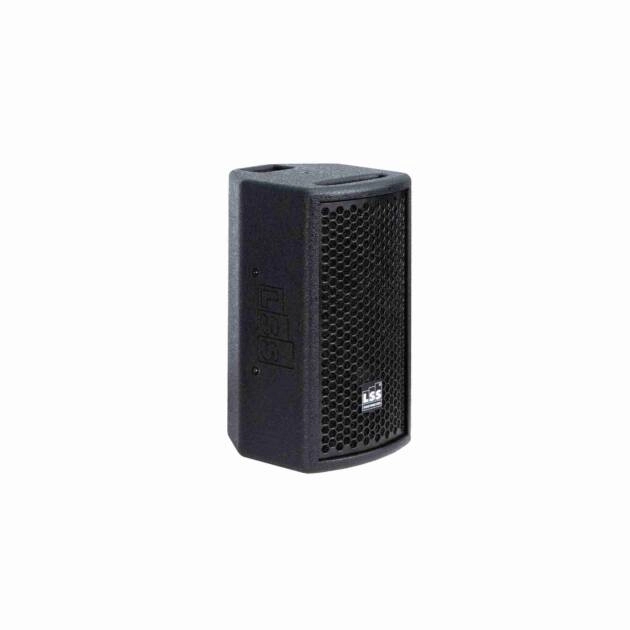

EXTREMELY COMPACT LOUDSPEAKER

Key Features

Speaker Power Capability
• 120W / Peak 250W (8Ω)

Magma5 is revolutionary 5″ multi-function  loudspeakers ideally  for mobile and fixed installation applications, especially where high  SPL is needed. Magma can be used for main PA system or as a floor monitor.
SKU: M5
Product ID: 54036

Application

Magma 5 is a multi-function very small loudspeaker for mobile and fixed installation applications,
especially where high SPLs needed. Magma 5 can be used as a mini floor monitor.A 5” LF transducer and a 1” conical horn-loaded compression driver produce a maximum output of 118 dB SPL, the unit exceed most performance comparable devices. The extraordinary power handling capability of this Magma system means that it can comfortably and reliably reproduce a range of program setup with very low distortion and power compression.
The pilotage need only one amplifier channel , the frequency splitting being accomplished by the
low-loss passive filter passive crossover network inside the enclosure manufactured with top grade components, including coils with very low resistance and metalized polypropylene capacitors.It also features circuitry to protect the HF component against excessive current and voltage. Personalized setup avilable for Powersoft sytem amplifier. The cabinet is from Baltic birch features craftsmanship protected by an epoxy powder coated, resonance-free steel grill over acoustically transparent foam.

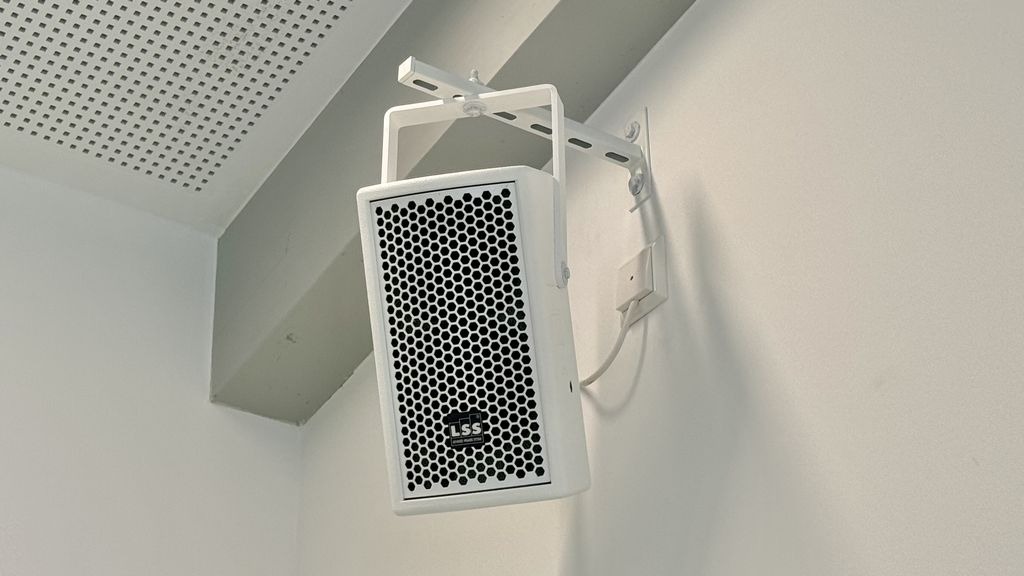

Every cabinet is coated with a high-tech black textured polwater scratch free finish and custom RAL is possible on request.The system includes mounting hardware, compatible with various separately available mounting brackets.

Performance

Frequency Response
• -10dB 70Hz to 22KHz

Max SPL Output Calculated
• 118dB

Nominal Input Impedance (ohms)
• Full Range Passive 8Ω

Power Handling (watts cont. AES)
• 120W / Peak 480W

Coverage
• 80° (H) x 80°(V)

Physical

Dimensions mm (±1 mm)
• 330(H) x 180(W) x 200(D)mm

Weights
• Net Weight 5.9kg

Enclosure Material
• Component Low 5” woofer
• Component High 1” diaphragm compression driver
• Loading Low Bass-reflex
• Loading High 1” Conical Horn
• Connectors 4 x NL4 PAR Pins 1+/1-
• Cabinet Material Baltic birch plywood
• Cabinet Finish Black polywater coating
• Grill Epoxy powder coated
• Installation Points 8 x M6
• Pole Mount 35 mm socke
