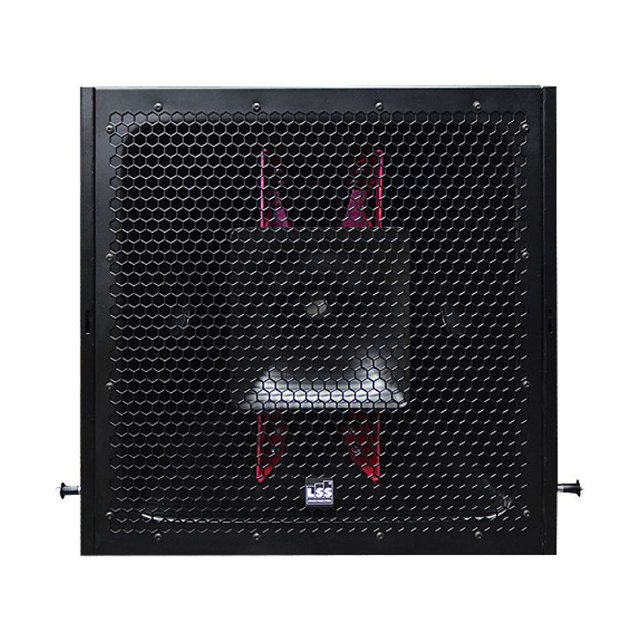

QREX

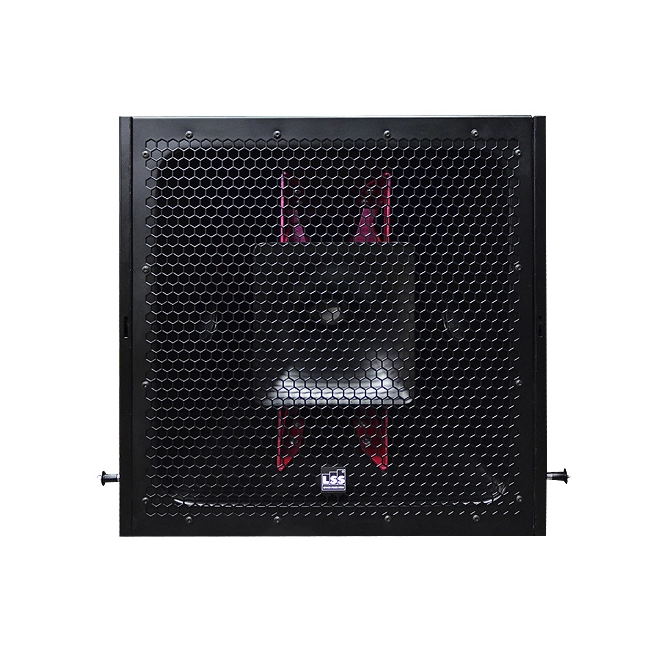

HORN LOADED LONG-THROW ARRAYABLE SPEAKER

Key Features

Speaker Power Capability
• 700W / Peak 2800W (8Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 133dB

Coverage
• 60° (H) x 40°(V)

2-Way Vertical Arrayable Coaxial Horn Loudspeaker of high output and low distortion.
SKU: QREX
Product ID(54030)

Application

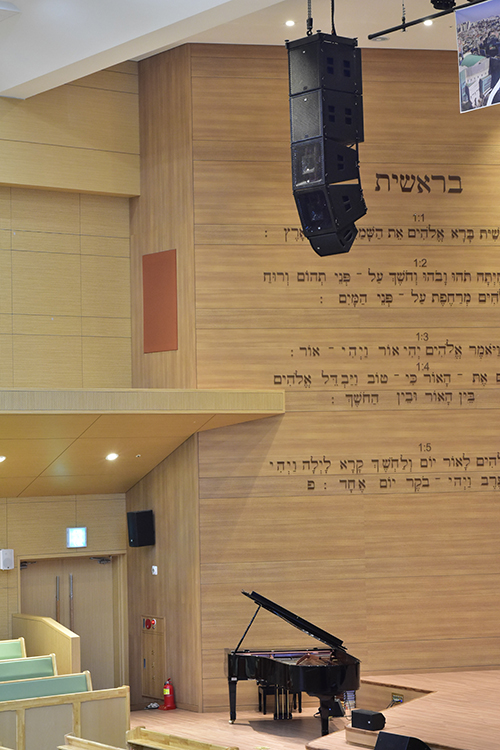

Ideal for medium to long-throw applications. This system was designed for high performance and very high peak output for concert sound and big event of disco music also ideal for any fixed install application. The trapezoidal cabinet is constructed out of 18 mm birch plywood, and coated polyuretanic paint. The powering mode is full range passive with input and link of NL4 type connectors.
2-Way Vertical Arrayable Coaxial Horn Loudspeaker of high output and low distorsion. Ideal for medium to long-throw applications. This system was designed for high performance and very high peak output for concert sound and big event of disco music also ideal for any fixed install application. The trapezoidal cabinet is constructed out of 18mm birch plywood, and coated polyuretanic paint. The powering mode is full range passive with input and link of NL4 type connectors..

• Arrayable Coaxial Horn System
• 3″ HF on Horn 60°X 40° coax
• 12″ LF on Reflex Horn 60°X 40° coax Enclosure
• Powering mode Full Range Passive
• Optional Accessories: Skate with weels

Performance

Frequency Response
• ±2,5 dB 90 Hz – 20KHz
• – 10dB 65Hz

Speaker Power Capability
• 700W / Peak 2800W

Sensitivity(@ 1m)
• MAX SPL(Calculated) 133dB

Nominal Input Impedance (Ohms)
• Full Range Passive 8Ω
• LF 8
• HF 16

Coverage
• 60° (H) x 40°(V)

ADDITIONAL_DATA
Product Series QREX
• LF Subsystem & Loading One 320 mm (12″) woofer vented
• HF Subsystem & Loading One 36mm (1.5″) exit/75 mm (3″) voice coil Titanium/Neodymium
• Crossover two-way 12/18 dB
• Sistem Protection HF
• Operating Mode Full Range Passive

Physical

Dimensions mm (±1 mm)
• 595(H) x 600(W) x 600(D)mm

Weights
• Net Weight 43kg

Enclosure Material
• Enclosure material Birch Plywood of 18mm
• Finish Texture poliuretanic black paint
• Suspension Hardware kit included
• Grille Poweder coated perforated steel
• Connectors Two Neutrik NL4 speakon
• Optional Accessories Skate with wells
