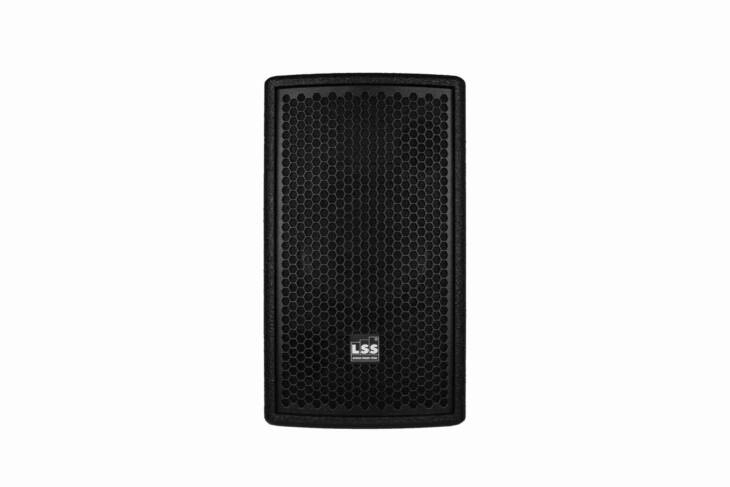

M8CX

ULTRA COMPACT LOUD SPEAKER

Key Features

Speaker Power Capability
• 300W / Peak 800W (8Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 129dB

Coverage
• 90° (H) x 90°(V)

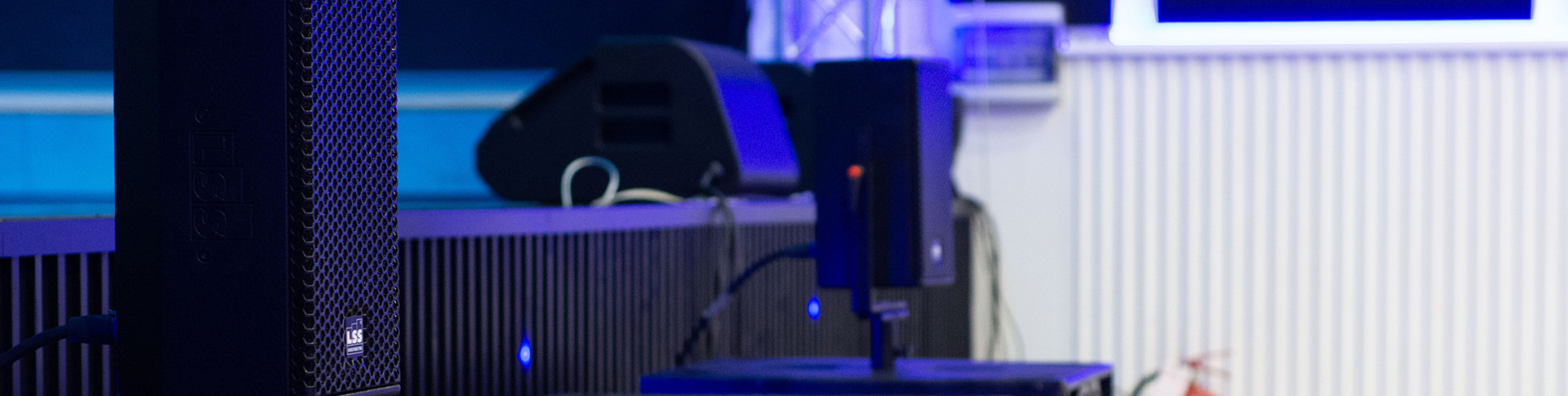

M8CX is a coaxial system for live monitoring and short throw sound reinforcement applications with invisible visual impact. M8CX has a high SPL capability and extended LF resources in a very compact cabinet.
SKU: M8CX
Product ID: 54035

Application

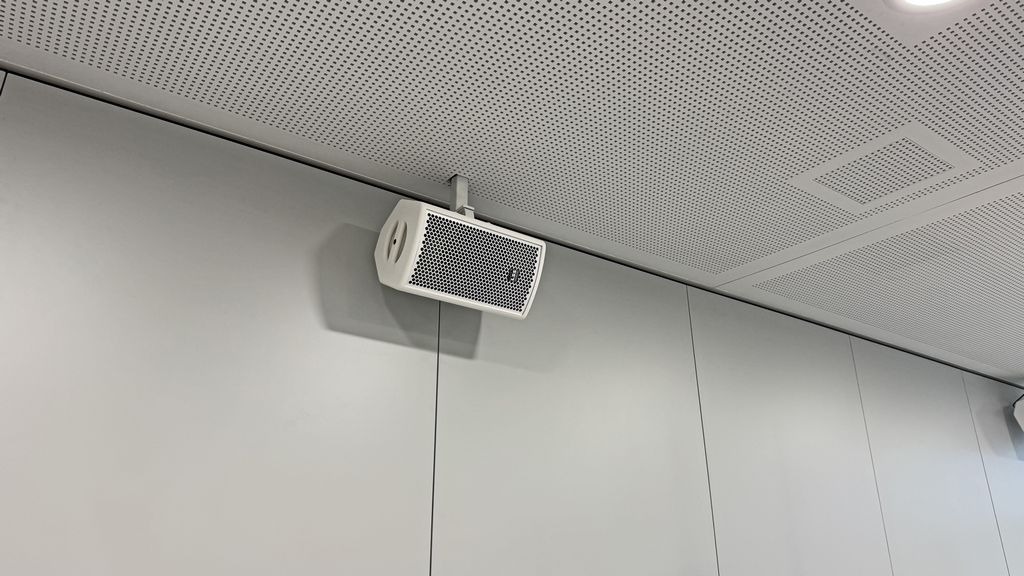

The M8CX is a multi-function very compact loudspeaker for mobile and fixed installation applications, especially where high SPL is needed. M8CX uses a 8″ coax driver coupled with a 1.5″ diaphragm HF compression driver loaded in a bass-reflex cabinet. M8CX operates from 50Hz to 20kHz. The coaxial transducer produces a 90° directivity output with a neutral flat response free of secondary lobes over the entire frequency range. M8CX uses an internal passive crossover network with custom filters by LSS. The cabinet is made of Baltic birch plywood protected, in the front side, by a resonance-free steel grill coated in epoxy powder with an acoustically transparent foam. Every cabinet is coated with high-tech black textured polywater scratch free finish and custom RAL is available on request. The system includes mounting hardware, compatible with various separately available mounting brackets.

Performance

Frequency Response
• -10dB 50Hz to 20KHz
Speaker Power Capability
• 300W / Peak 800W
Sensitivity(@ 1m)
• MAX SPL(Calculated) 129dB
Nominal Input Impedance (Ohms)
• 8Ω
Coverage
• 90° (H) x 90°(V)

Physical

Dimensions mm (±1 mm)
• 420(H) x 245(W) x 260(D)mm

Weights
• Net Weight 9kg

Enclosure Material
• Cabinet Material Baltic birch plywood
• Cabinet Finish Black polywater coating
• Grill Epoxy powder coated
• Installation Points 10xM6
• Pole Mount M20 socket
• Connectors 2xNL4 PAR Pins 1+/1-
