MIL130

COMPACT 2-WAY LOUDSPEAKER

Key Features

Speaker Power Capability
• 200W / Peak 800W (16Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 118dB

Coverage
• 80° (H) x 80°(V)

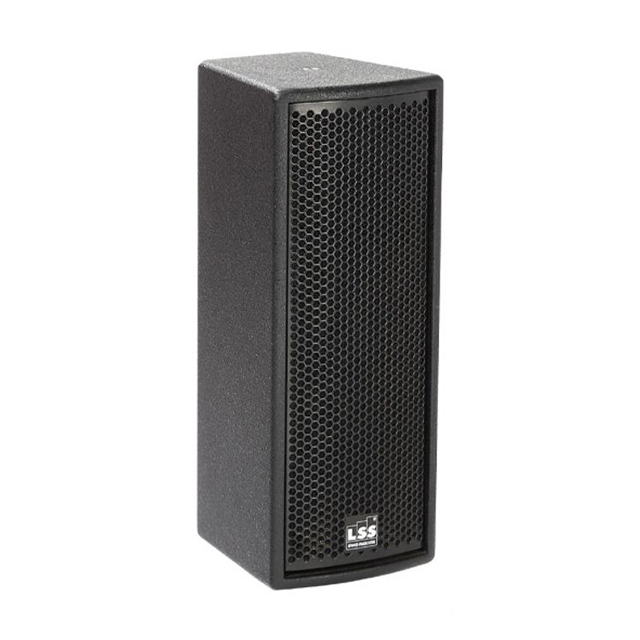

MIL130 is a 2-way full range system in a compact trapezoidal enclosure.
SKU:MIL130
Product ID: 54034

Application

MIL130 includes two 130 mm (5’’) woofers and a 26 mm (1’’) HF Driver on conical horn.
This loudspeakers, is designed to work in full range mode. LSS’s advanced crossover includes professional protection of HF system.

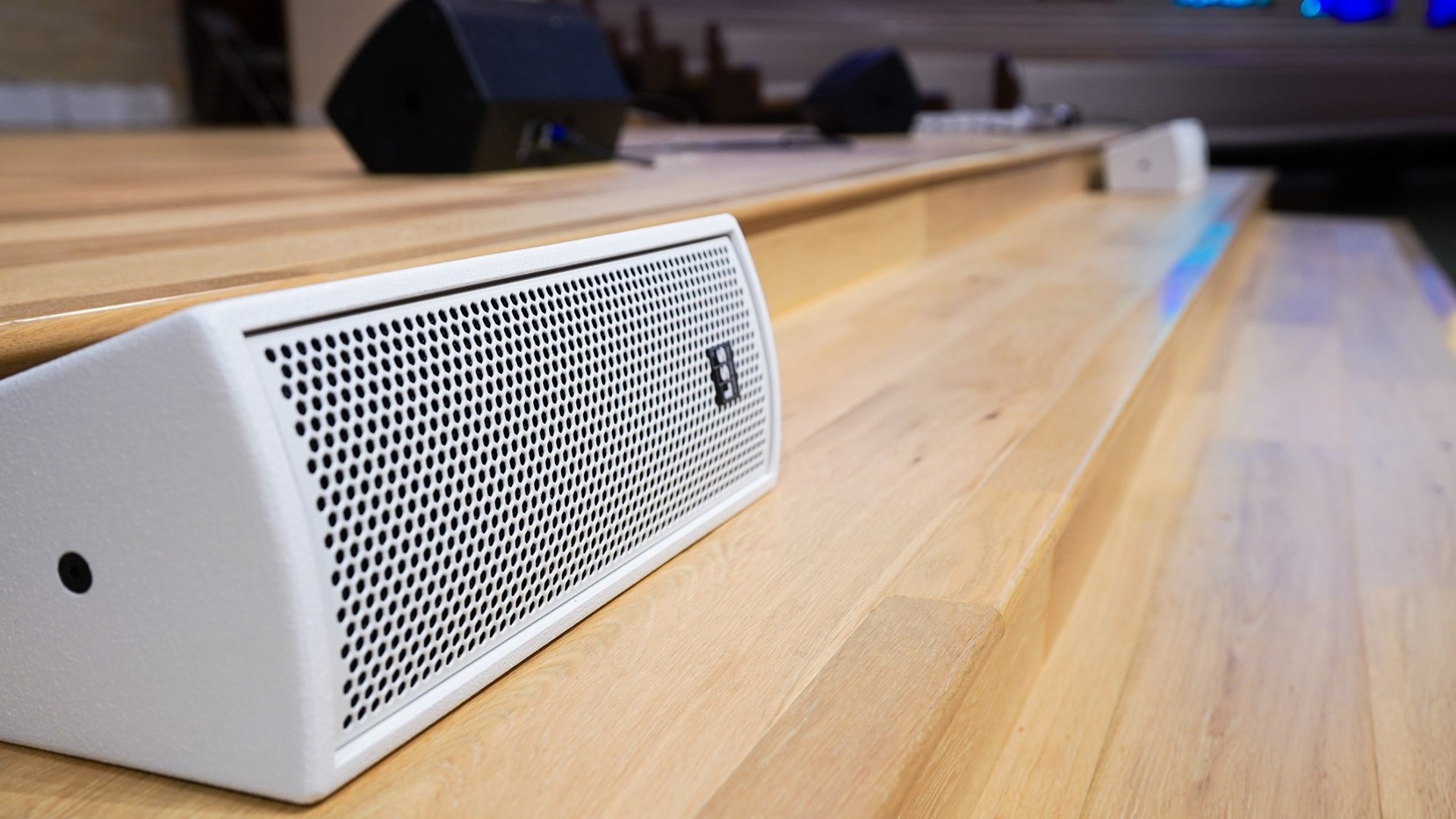

The MIL130 system is engineered for exceptional performance in the nearfield from a compact enclosure.Very effective as a fill/delay element in larger overall systems or for foreground/background music reproduction. It is also ideal for distributed systems. The comprehensive system mounting points permit safe suspension in permanent installations.

• Dual 5″ LF in Vented Enclosure
• 1″ Compression driver with Conical Horn
• Ultra-Compact Passive 2 -Way System
• Trapezoidal Cabinet
• Fly Mounting Points and U Bracket Included
• Powering Mode: Full Range Passive
• For Touring or Permanent Installation

Performance

Frequency Response
• ±5 dB 70Hz to 20KHz
• -10 dB 60Hz

Speaker Power Capability
• 200W / Peak 800W (16Ω)

Sensitivity(@ 1m)
• 91dB / MAX SPL(Calculated) 123dB

Nominal Input Impedance (Ohms)
• Full Range Passive 16
• LF 16
• HF 16

Coverage
• 80° (H) x 80°(V)

ADDITIONAL_DATA
Product Series MIL
• LF Subsystem & Loading Two 130 mm (5”) woofer
• HF Subsystem & Loading One 26 mm (1”) HF driver
• Crossover two-way 12/18 dB
• Professional protection of HF system
• Operating Mode Passive

Physical

Dimensions mm (±1 mm)
• 460(H) x 180(W) x 200(D)mm

Weights
• Net Weight 8kg

Enclosure Material
• Enclosure materia:l Birch Plywood of 12mm
• Finish: Texture poliuretanic black paint
• Suspension: 4 point mounting suspension
• Grille: Powder coated perforated steel
• Connectors: 2 Neutrik Speakon NL4
• Optional Accessories: Fly clip with ring,
Flight Case on wheels for 4 or 8 MIL130
