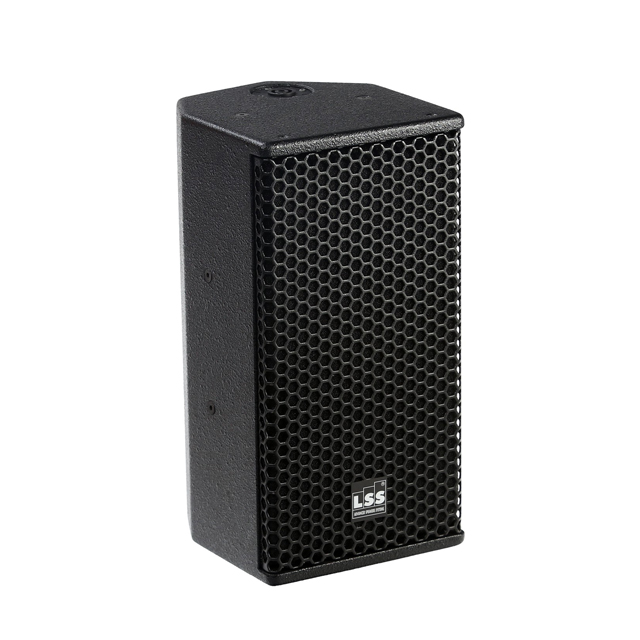

M30.3

ULTRA COMPACT MULTI-FUNCTION LOUDSPEAKER

Key Features

Speaker Power Capability
• 250W / Peak 1000W (16Ω)

Sensitivity(@ 1m)
• 93dB / MAX SPL(Calculated) 126dB

Coverage
• 90° (H) x 40°(V)

2-Way loudspeaker system uses one 160 mm (6”) long excursion woofer with Neodymium magnet and voice coil of 44 mm (1.75”), Polyethylene 34.4 mm (1.4”) Neodymium driver coupled to a rotatable ABS horn.

Application

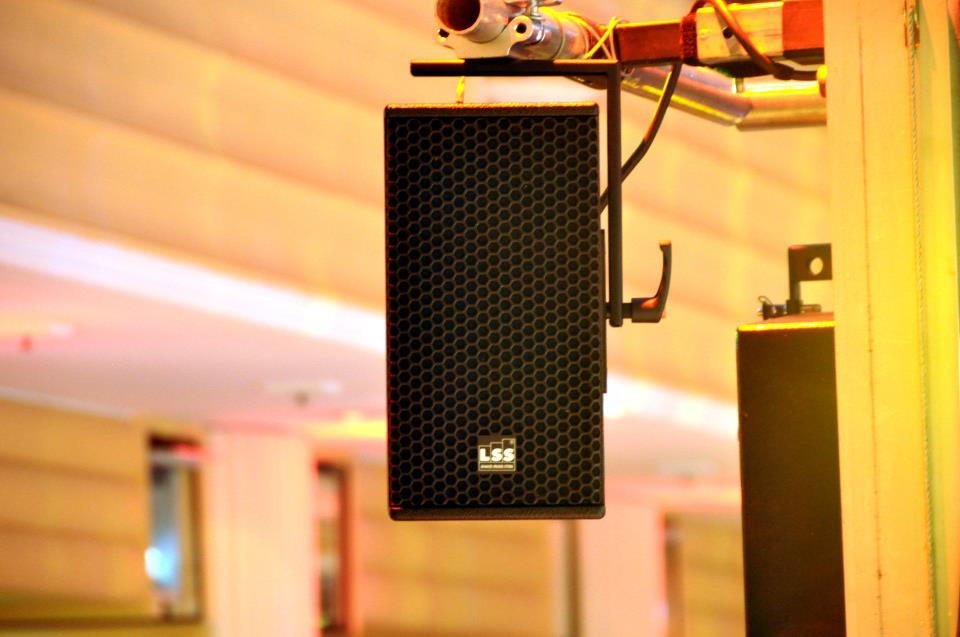

The mounting points included in the cabinet or the bracket offer the possibility of suspension in any position. The cabinet beveled on the sides makes it practical for use as a small monitor or clusters creations. M30.3 can be used in full range mode or with a subwoofer (ex. SUBDRIVE12 that allows pilotage with dedicated setup). Also other models as SUBDRIVE12, PSUB1 etc. are ideal compromise. The passive crossover of low tolerance with slope 12dB/18dB and the protection circuit Poliswitch ensure high pressures and maximum reliability.
M30.3 is a new power multifunction speaker it can be placed anywhere that you need a small dimension and nice look. Extremely powerful 250 Watt 16 Ohm is ideal for distributed systems, frontfill, for sound reinforcement in A/V events. The comprehensive system mounting points permit safe, suspension in portable and permanent installations.

• 6″ LF Neodymium with 1.75″ voice coil in vented enclosure
• 1.4″ Ferrite Driver with ABS Rotable Horn (90° x 40°coverage pattern)
• Fly mounting points and brakets included
• Powering mode: full range passive
• For portable use or permanent installation

Performance

Frequency Response
• ±5 dB 80Hz to 20KHz
• -10 dB 65Hz

Speaker Power Capability
• 250W / Peak 1000W (16Ω)

Sensitivity(@ 1m)
• 93dB / MAX SPL(Calculated) 126dB

Driving Impedance (Ohms)
• Full Range Passive 16
• LF 16
• Hf16

Coverage
• 90° (H) x 40°(V)

ADDITIONAL_DATA
• Product Series M
• LF Subsystem & Loading One 160mm woofer vented
• HF Subsystem & Loading One 34.4mm Polyetylene
• Neodymium driver on 25mm Rotable 90×40 ABS Horn
• Crossover 2 way 12/18dB
• Sistem Protection POLISWITCH
• Operating Mode Passive or BI AMP (passive LF/HF)
• Accessories Bag for M30.3

Physical

Dimensions mm (±1 mm)
• 375(H) x 195(W) x 210(D)mm

Weights
• Net Weight 8.5kg

Enclosure Material
• Enclosure material Birch Plywood of 12mm
• Finish Texture poliuretanic black paint
• Suspension 5 point mounting suspension
• Grille Poweder coated perforated steel with anti-dust foam
• Connectors Four neutrik NL4 speakon
• Optional Accessories Adjustable speaker mount included, speaker soft bag
