PULCE

EXTREMELY COMPACT LOUD SPEAKER

Key Features

Speaker Power Capability
• 30W / Peak 75W (16Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 102dB
Coverage
• 80° (H) x 80°(V)

PULCE loudspeaker is extremely compact and wide-range loudspeaker for high quality distributed system applications.
SKU: PLC-1
Product ID: 54076

Application

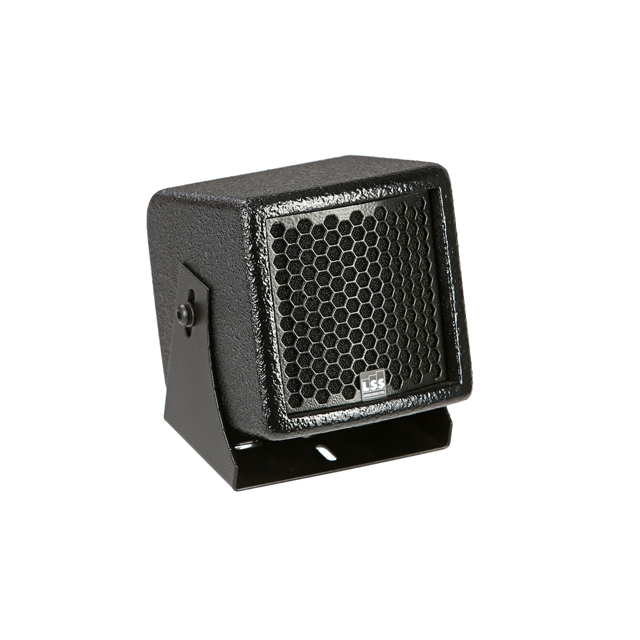

PULCE comprises a single 80 mm (3”) cone driver with 25 mm (1”) voice coil mounted in a sealed enclosure of MDF of 12mm with U-Bracket. It can be ordered custom-painted to match décor and is fitted with a perforated steel grille.
PULCE is ideal for distributed systems, the cubic cabinet with comprensive U-bracket allows easy installation. Pulce It is ideal for sound reinforcement in A/V events, paging and background music. The mounting bracket allows safe suspension in permanent installations.

• Wide-range frequency response shielded speaker
• High-quality distributed systems, paging and music
• Surround sound
• Background music systems in restaurants and clubs
• Exhibit audio for museum displays
• Color matching available
• Flexible mounting options ease installation
• For fixed installation

Performance

Frequency Response
• ±5 dB 120Hz to 18Khz
• -10 dB 110Hz

Speaker Power Capability
• 30W / Peak 75W (16Ω)

Drivin Impedance (Ohms)
• Full Range Passive 16Ω

Coverage
• 80° (H) x 80°(V)

ADDITIONAL DATA
Product Series PULCE
• FR system & Loading One 80 mm (3″) cone driver with 25 mm (1″) voice coil
• Operating Mode Passivee

Physical

Dimensions mm (±1 mm)
• 105(H) x 112(W) x 112(D)mm

Weights
• Net Weight 0.8kg

Enclosure Material
• Enclosure material: MDF of 12mm
• Finish: Texture poliuretanic black paint
• Suspension: U-bracket system
• Grille: Powder coated perforated steel
•Connectors: Black and Red Clamps
