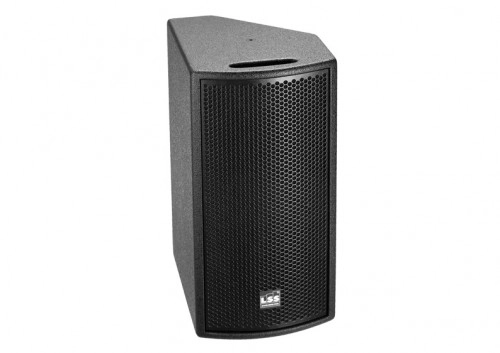

SP220

COMPACT MULTI-FUNCTION SPEAKER

Key Features

Speaker Power Capability
• 300W / Peak 1200W (8Ω)

Sensitivity(@ 1m)
• 94dB / MAX SPL(Calculated) 127dB

Coverage
• 90° (H) x 40°(V)

2-Way loudspeaker system as a dedicated top-box or personal mini-monitor and should be supported by subwoofer below 100Hz.

Application

SP220 uses one 200 mm (8”) mid-woofer ferrite with a high escursion voice coil and a driver from 25 mm (1”) in Mylar on a rotatable horn. SP220 is built entirely of multilayer of phenolic from 15mm BIRCH treated. The passive crossover with a low tolerance 12/18dB slope for the woofer and low distortion ensure a sound and maximum reliability. SP220  works in Full-Range.
The LSS SP220 is a loudspeaker designed for use in portable or fixed installations. The pole mount cup and balance-optimized handles allows for quick and easy load-in for portable use. His extreme linearity and low distortion allows use as the main system in smaller events or as a personal floor monitor. SP 220 is designed for audio video sound in small or medium hall,etc. The points included in the coupling cabinet facilitate the suspension in fixed installations.

• 200 mm Ferrite LF in vented enclosure
• Horn-loaded (90° x 40° coverage pattern)
• Fly mounting points and pole mount cup included
• Powering mode full range passive
• For portable use or permanent installation

Performance

Frequency Response
• ±5 dB 60 Hz to 20 KHz
• -10 dB 40 Hz

Speaker Power Capability
• 300W / Peak 1200W (8Ω)

Nominal Input Impedance (Ohms)
• Full Range Passive 8

Sensitivity(@ 1m)
• 94dB / MAX SPL(Calculated) 127dB

Coverage
• 90° (H) x 40°(V)

ADDITIONAL_DATA
Product Series SP
• LF Subsystem & Loading One 200 mm (8″) woofer vented
• HF Subsystem & Loading One 25 mm (1″) exit/25 mm (1″) voice coil on rotable Horn
• Crossover 2 way 12/18dB
• Sistem Protection POLISWITCH Guard
• Operating Mode Full range Passive

Physical

Dimensions mm (±1 mm)
• 500(H) x 240(W) x 315(D)mm

Weights
• Net Weight 10kg

Enclosure Material
• Enclosure material BIRCH PLYWOOD of 15mm
• Finish Texture poliuretanic black paint
• Suspension 2 point mounting suspension
• Grille Poweder coated perforated steel with anti-dust foam
• Connectors two Neutrik NL4 speakon
