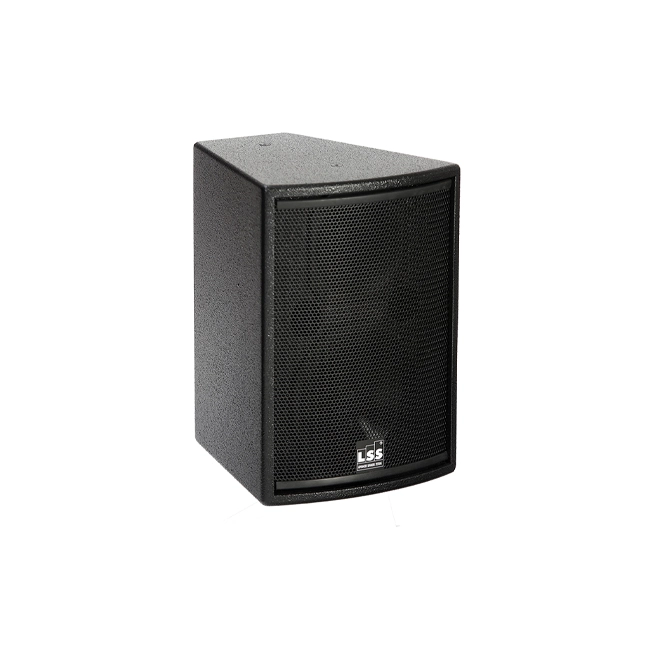

SP216

COMPACT 2-WAY LOUDSPEAKER

Key Features

Speaker Power Capability
• 100W / Peak 400W (8Ω)

Sensitivity(@ 1m)
• 92dB / MAX SPL(Calculated) 121dB

Coverage
• 80° (H) x 80°(V)

SP216 it is a two-way loudspeaker. SP216 uses one 160 mm (6″) mid-woofers with 38 mm (1.5″)  voice coil and one 26 mm (1″) driver on conical horn.

Application

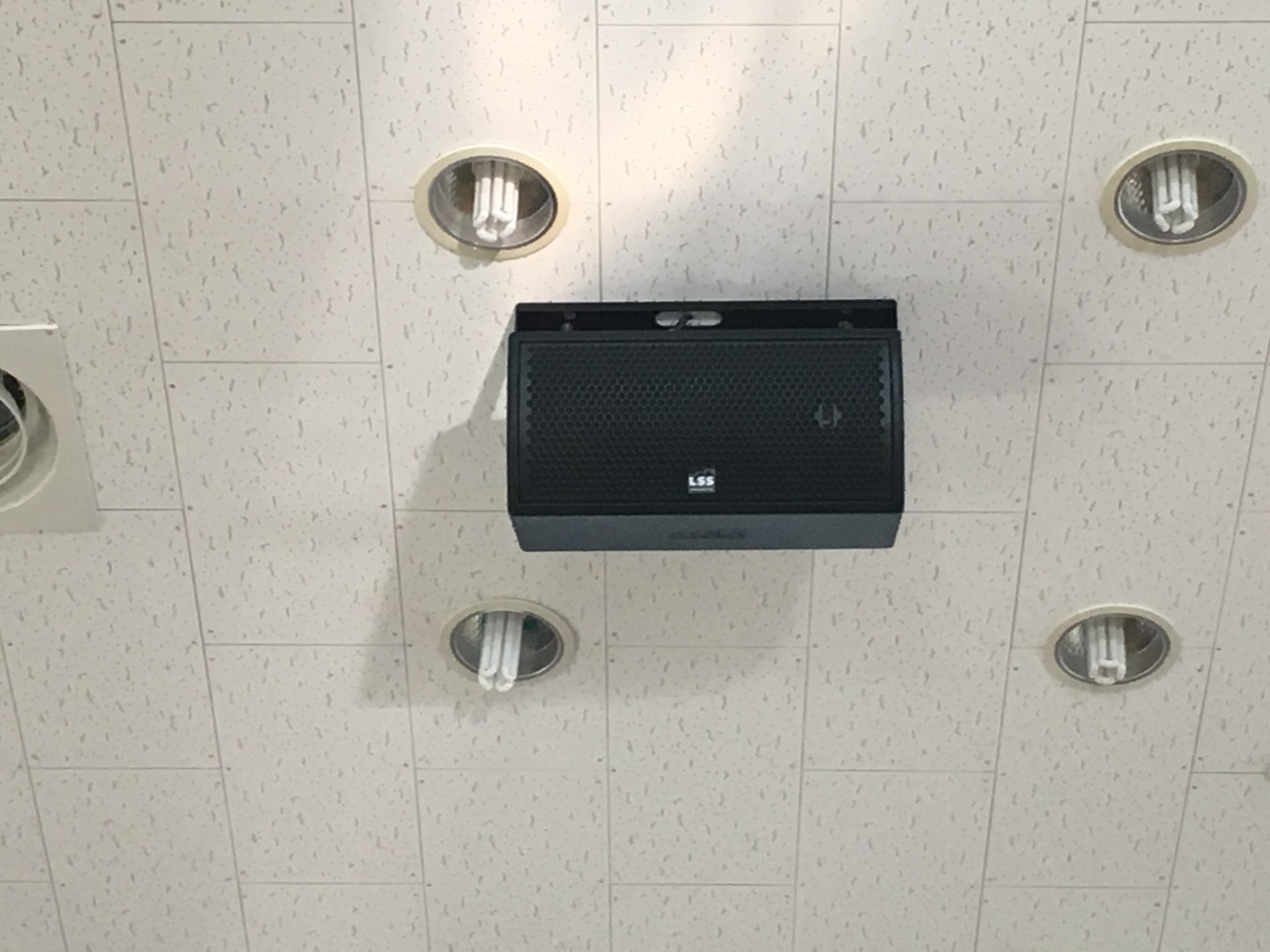

SP216 is ideal for medium and smaller clubs, dancefloors. The cabinet, offers built-in flying points for both horizontal and vertical mounting. The trapezoidal cabinet allows flexible fixing in low ceiling venues or easy construction of clusters and arrays. The system provides high output, low distortion sound reinforcement The internal passive crossover of 12db/octave and Poliswitch protection offers better performance in portable and permanently installed applications.
The SP216 system is ideal for distributed systems, the 13° per side trapezoidal angles match the 80° horizontal coverage pattern allowing the creation of tight packed clusters. It is ideal for sound reinforcement in A/V events. The comprehensive system mounting points permit safe suspension in permanent installations.

• 6″ LF in Vented Enclosure
• 1″ Compression driver with Conical Horn
• Fly Mounting Points aIncluded
• Powering Mode: Full Range Passive
• For Permanent Installation

Performance

Frequency Response
• ±5 dB 70 Hz to 20 KHz
• -10 dB 60 Hz

Speaker Power Capability
• 100W / Peak 400W (8Ω)

Nominal Input Impedance (Ohms)
• Full Range Passive 8
• LF 8
• HF 8

Sensitivity(@ 1m)
• 92dB / MAX SPL(Calculated) 121dB

Coverage
• 80° (H) x 80°(V)

ADDITIONAL DATA
Product Series SP
• LF Subsystem & Loading One 160 mm (6″) woofer vented
• HF Subsystem & Loading One 26 mm (1″) compression driver
• Crossover two-way 12/12 dB
• Sistem Protection POLISWITCH
• Operating Mode Passive full range

Physical

Dimensions mm (±1 mm)
• 335(H) x 240(W) x 255(D)mm

Weight
• Net Weight 6.5kg

Constriction and finiture
• Enclosure material: MDF of 14mm
• Finish: Texture poliuretanic black paint
• Suspension: 3 point mounting suspension
• Grille: Powder coated perforated steel
• Connectors: Black and Red Clamps
•Optional Accessories: Fly clip with ring
