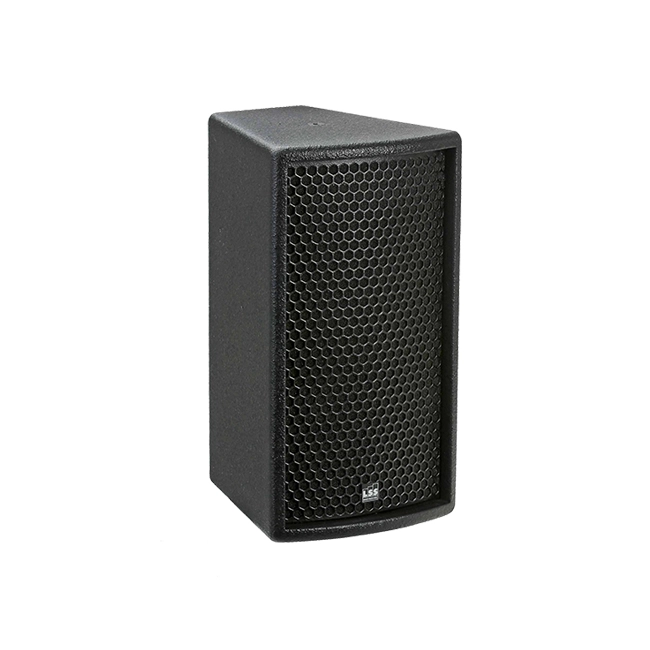

SP110

EXTREMELY COMPACT LOUD SPEAKER

Key Features

Speaker Power Capability
• 70W / Peak 280W (8Ω)

Sensitivity(@ 1m)
• 90dB / MAX SPL(Calculated) 117dB
Coverage
• 90° (H) x 100°(V)

2-WAY loudspeaker system is the first small enclosure to the SP Series.

Application

This speaker is able to reproduce Hi-Fi like professional sound. The bass reflex trapezoidal cabinet houses one 100 mm (4”) mid-woofer and one 28 mm (1.1”) silk soft dome tweeter.
This loudspeaker is designed to work in full-range mode or to be supported by the PULCEW subwoofer below 100Hz.
The SP110 system is ideal for distributed systems, the 13° per side trapezoidal angles match the 60° horizontal coverage pattern allowing the creation of tight packed clusters. It is ideal for sound reinforcement in A/V events. The comprehensive system mounting points permit safe suspension in permanent installations.

• 100 mm LF shielded in vented enclosure
• 28 mm shielded dome tweeter
• Fly mounting points included
• Powering mode full range passive
• For permanent installation

Performance

Frequency Response
• ±5 dB 80Hz to 20KHz
• -10 dB 65Hz

Speaker Power Capability
• 70W / Peak 280W (8Ω)

Sensitivity(@ 1m)
• 90dB / MAX SPL(Calculated) 117dB

Nominal Input Impedance (Ohms)
• Full Range Passive 8
• LF 8
• HF 8

Coverage
• 90° (H) x 100°(V)

ADDITIONAL DATA
Product Series SP
• LF Subsystem & Loading One 100 mm (4″) woofer shielded vented
• HF Subsystem & Loading One 28 mm (1.1″) dome shielded tweeter
• Crossover two-way 12/12 dB
• Sistem Protection POLISWITCH
• Operating Mode full range Passive

Physical

Dimensions mm (±1 mm)
• 270(H) x 150(W) x 170(D)mm
• Trapezoid angles (degrees) 13° per side

Weights
• Net Weight 2.3kg

Enclosure Material
• Enclosure material: MDF of 14mm
• Finish: Texture poliuretanic black paint
• Suspension: 5 point mounting suspension
• Grille: Powder coated perforated steel
• Connectors: Black and Red Clamps
•Optional Accessories: Fly clip with ring
