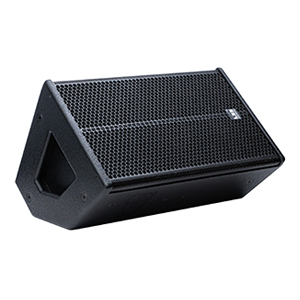

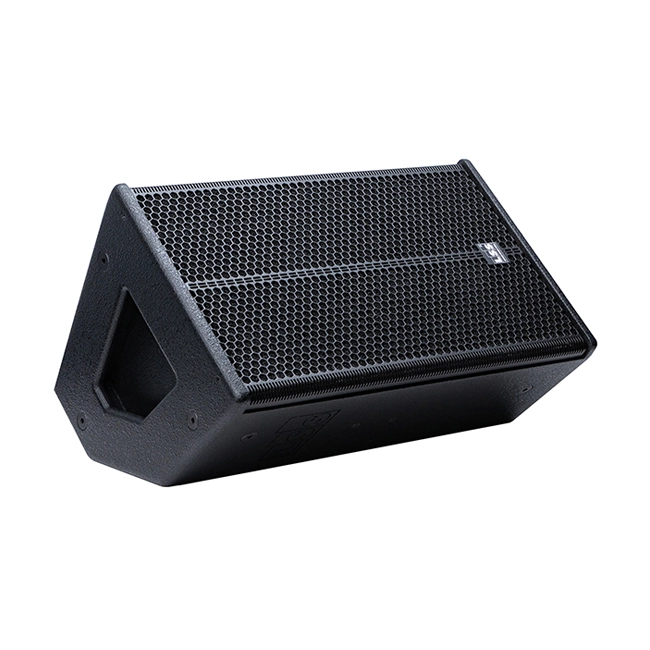

MAGMA14

COMPACT LOUDSPEAKER

Key Features

Speaker Power Capability
• 800W / Peak 2000W (8Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 132dB

Coverage
• 80° (H) x 60°(V)

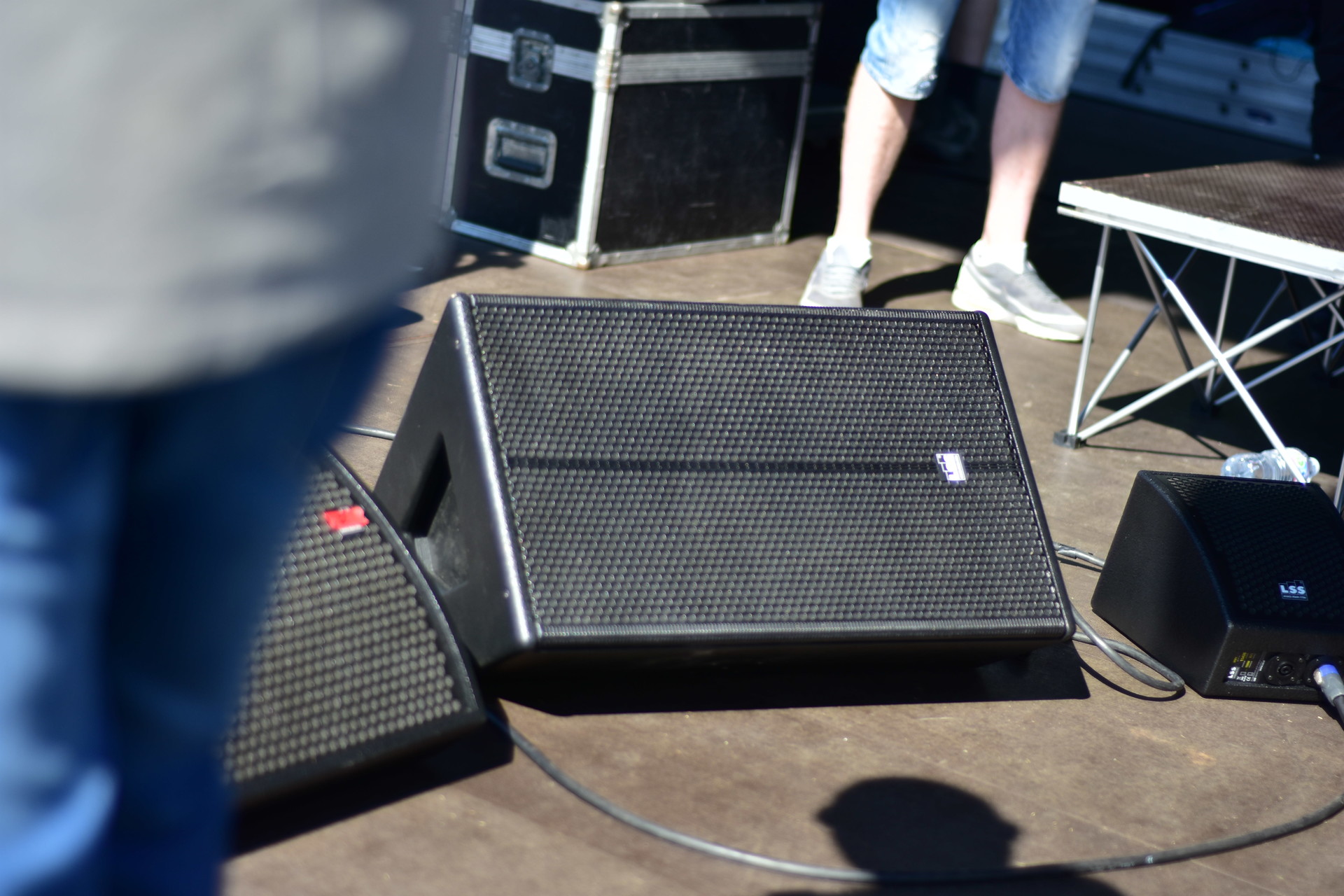

Magma14 is revolutionary 14″ multi-function  loudspeakers ideally  for mobile and fixed installation applications, especially where high  SPL is needed. Magma can be used for main PA system or as a floor monitor.
SKU: M14 Product ID: 54041

Application

The Magma 14 is a multi-function compact loudspeaker for mobile and fixed installation applications, especially where high SPLis needed. Magma 14 can be used for main PAsystem or as a floor monitor. A customized 14” LF transducer and a 3” compression driver on rotable horn produces a maximum output of 132 dB SPL. The unit will comfortably exceed the performance of most comparable devices loaded with 15” LF drivers. The extraordinary power handling capability of this Magma system means that it can comfortably and reliably reproduce a range of program setups with very low distortion and power compression. The pilotage need only one amplifier channel , the frequency splitting being accomplished by the low-loss passive filter passive crossover network inside the enclosure engineered manufactured with top grade components, including coils with very low resistance and metalized polypropylene capacitors. It also features circuitry to protect the HF component against excessive current and voltage. Personalized setup available for Powersoft system amplifier. The cabinet is from Baltic birch features craftsmanship protected by an epoxy powder coated, resonance-free steel grill over acoustically transparent foam. Every cabinet is coated with a high-tech black textured polywater scratch free finish and custom RAL is possible on request. The system includes mounting hardware, compatible with various separately available mounting brackets.

Performance

Frequency Response
• -10dB 55Hz to 22KHz

Max SPL Output Calculated
• 132dB SPL

Nominal Input Impedance (ohms)
• Full Range Passive 8Ω

Power Handling (watts cont. AES)
• 800W / Peak 2000W

Coverage
• 80° (H) x 60°(V)

ADDITIONAL_DATA
• LF Subsystem & Loading Two 152mm woofer vented
• HF Subsystem & Loading One 75mm exit/50mm voice coil
• Operating Mode Passive Full-Range or BI-AMP (with Internal crossover)

Physical

Dimensions mm (±1 mm)
• 680(H) x 420(W) x 380(D)mm

Weights
• Net Weight 26.3kg


Enclosure Material
• Component Low 14” woofer
• Component High 3” diaphragm compression driver
• Loading Low Bass-reflex
• Loading High 1 1/4 Rotable Horn
• Connectors 4 x NL4 PAR Pins 1+/1-
• Cabinet Material Baltic birch plywood
• Cabinet Finish Black polywater coating
• Grill Epoxy powder coated
• Installation Points 8 x M6, 6 X M8
• Pole Mount 35 mm socket
