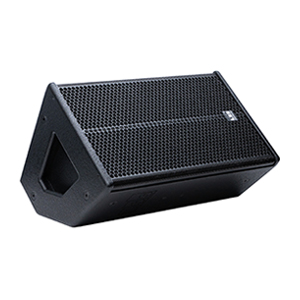

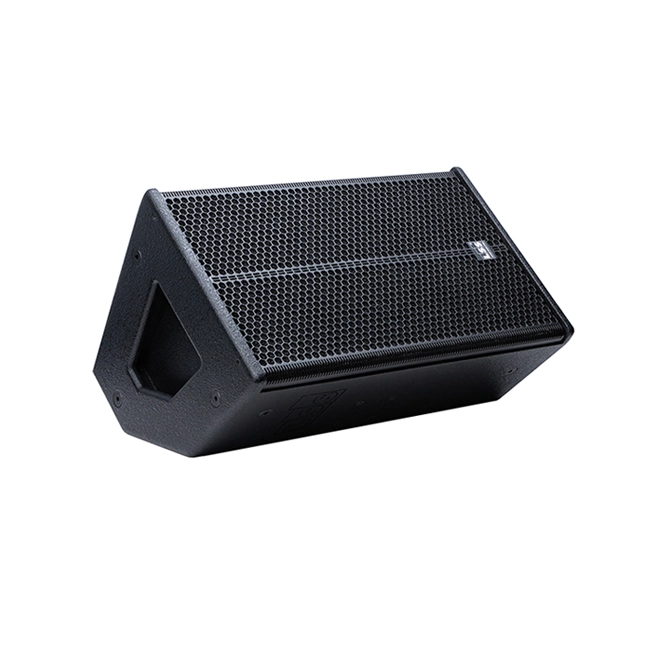

MAGMA10

COMPACT LOUDSPEAKER

Key Features

Speaker Power Capability
• 400W / Peak 900W (8Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 126dB

Coverage
• 90° (H) x 40°(V)

Magma10 is revolutionary 10″ multi-function  loudspeakers ideally  for mobile and fixed installation applications, especially where high  SPL is needed. Magma can be used for main PA system or as a floor monitor.
SKU: M10
Product ID: 54039

Application

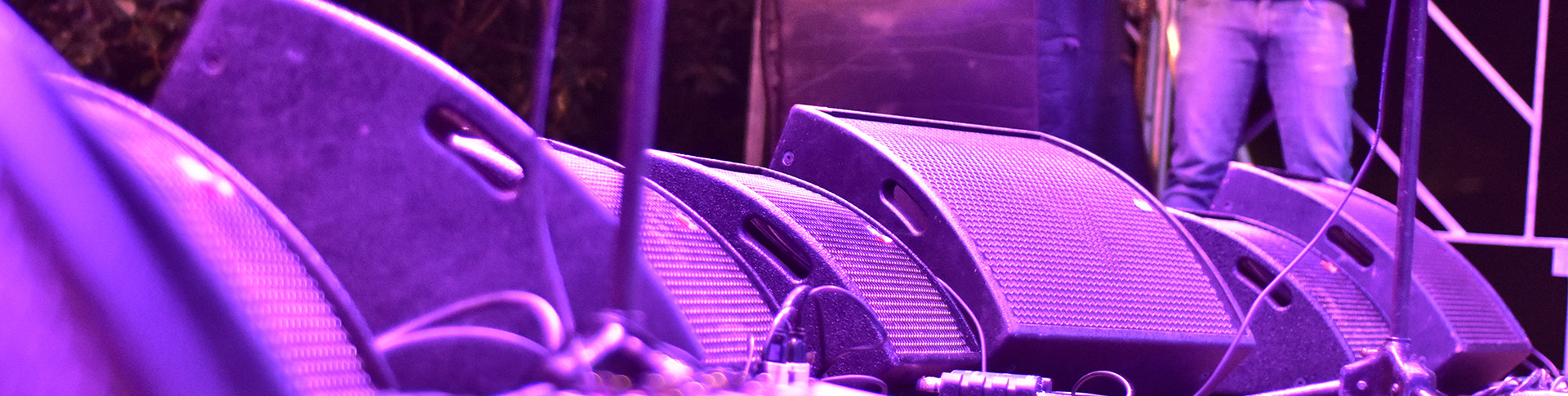

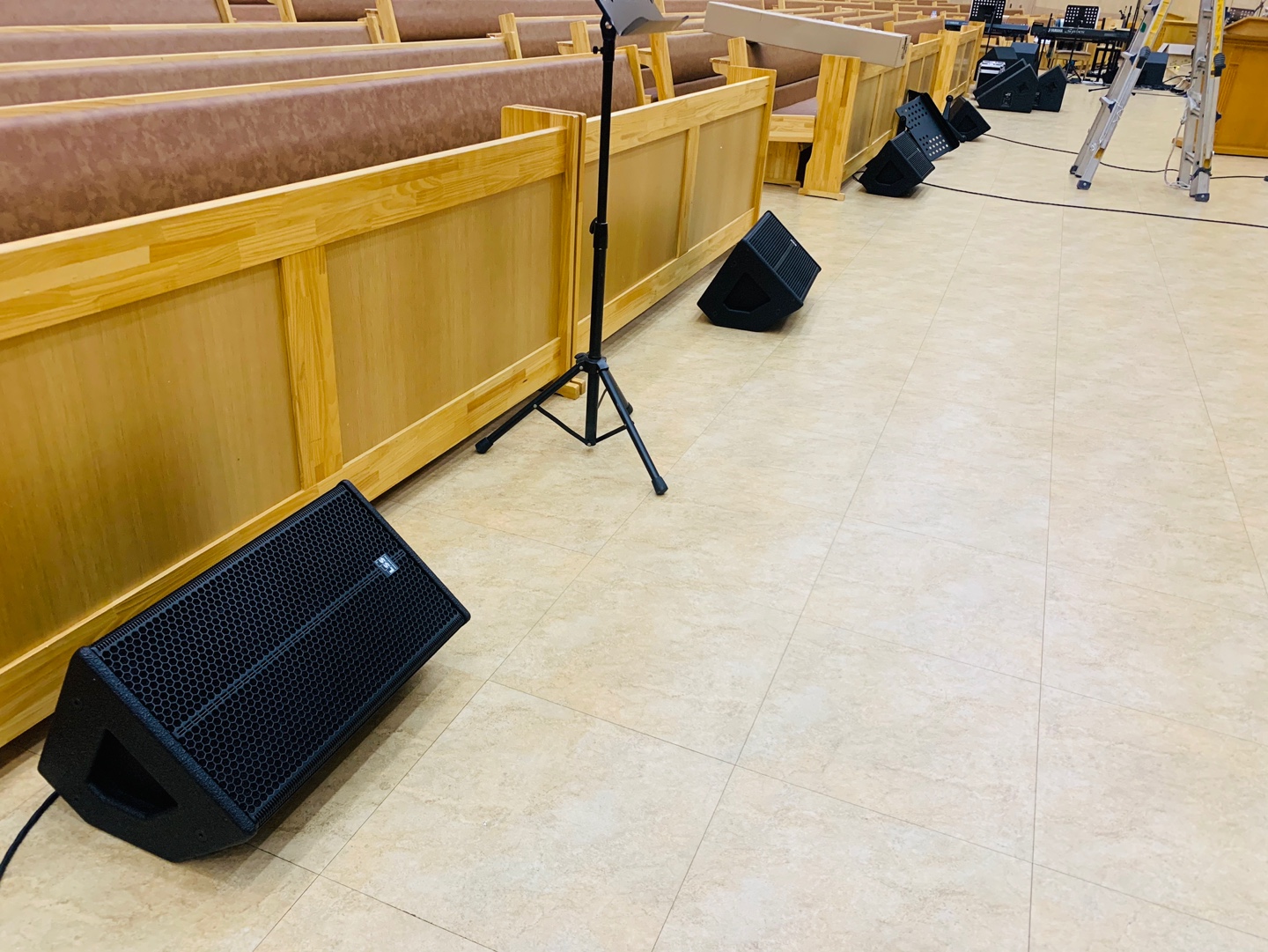

Magma 10 is a multi-function very compact loudspeaker for mobile and fixed installation applications, especially where high SPLs needed. Magma 10 can be used for mini PAsystem alone
or copled with a LSS sub woofer. Possyble also to use as a floor monitor. A customized 10” LF transducer and a 1.7” HF driver on rotable horn produce a maximum output of 126 dB SPL, the unit exceed most performance comparable devices. The extraordinary power handling capability of this Magma system means that it can comfortably and reliably reproduce a range of program setup with very low distortion and power compression.The pilotage need only one amplifier channel the frequency splitting being accomplished by the low-loss passive filter passive crossover network inside the enclosure engineered and manufactured with top grade components, including coils with very low resistance and metalized polypropylene capacitors. It also features circuitry to protect the HF component against excessive current and voltage, (Personalized setup avilable for Powersoft sytem amplifier). The cabinet is from Baltic birch features craftsmanship protected by an epoxy powder coated, resonance-free steel grill over acoustically transparent foam. Every cabinet is coated with a high-tech black textured polwater scratch free finish and custom RAL is possible on request.The system includes mounting hardware, compatible with various separately available mounting brackets.

Performance

Frequency Response
• -10dB 65Hz to 22KHz

Max SPL Output Calculated
• 126dB

Nominal Input Impedance (ohms)
• Full Range Passive 8Ω

Power Handling (watts cont. AES)
• 400W / Peak 1600W

Coverage
• 90° (H) x 40°(V)

Physical

Dimensions mm (±1 mm)
• 520(H) x 320(W) x 290(D)mm

Weights
• Net Weight 15.8kg


Enclosure Material
• Component Low 10” woofer
• Component High 1.7” diaphragm compression driver
• Loading Low Bass-reflex
• Loading High 1” Rotable Horn
• Connectors 2 x NL4 PAR Pins 1+/1-
• Cabinet Material Baltic birch plywood
• Cabinet Finish Black polywater coating
• Grill Epoxy powder coated
• Installation Points 8 x M6
• Pole Mount 35 mm socke
