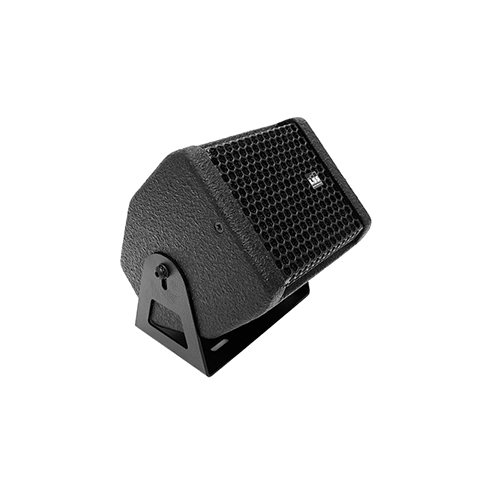

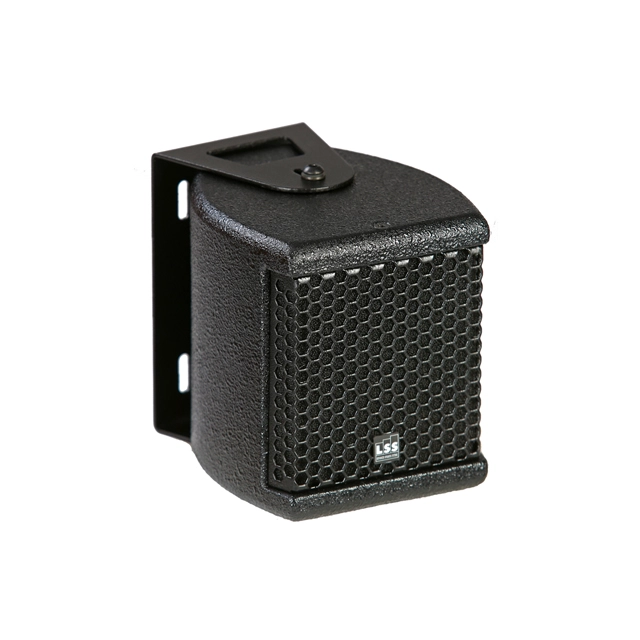

PP4

EXTREMELY COMPACT LOUD SPEAKER

Key Features

Speaker Power Capability
• 60W / Peak 150W (16Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 112dB

Coverage
• 80° (H) x 80°(V)

PP4 loudspeaker is extremely compact and wide-range loudspeaker for high quality distributed system applications.
SKU: PP4
Product ID: 54033

Application

PP4 comprises a single 100 mm (4”) water-resistant cone driver with 16 Ohms nominal impedance and 25 mm (1”) voice coil mounted in a sealed enclosure of BIRCH PLYWOOD of 14 mm  and plywood of 6 mm curved on sides. Despite the ultra-low size 140mm x 145 mm surprises in the natural timbre sound. The cabinet finish  can be customized on request.
PP4 is ideal for distributed systems, the cabinet with comprehensive U bracket allow easy installation. PP4 is ideal for sound reinforcement in A/V events, paging and background music. The comprehensive system mounting points allows safe suspension in permanent installations.

• Wide-range frequency response speaker
• High-quality distributed systems,paging and music
• Low distortion maximize intelligibility
• Background music systems in restaurants and clubs
• Exhibit audio for museum displays
• Color matching available
• Flexible mounting options ease installation
• For fixed installations

Performance

Frequency Response
• ±5 dB 120Hz to 18kHz
• -10 dB 110Hz

Speaker Power Capability
• 60W / Peak 150W

Sensitivity(@ 1m)
• MAX SPL(Calculated) 112dB

Drivin Impedance (Ohms)
• Full Range Passive 16Ω

Coverage
• 80° (H) x 80°(V)

ADDITIONAL DATA
Product Series PULCE
• FR system & Loading One 100 mm (4″) cone driver and 25 mm (1″) voice coil
• Operating Mode Passive

Physical

Dimensions mm (±1 mm)
• 141(H) x 128(W) x 145(D)mm

Weights
• Net Weight 1.5kg

Enclosure Material
• Enclosure material: BYRCH PLYWOOD of 14 mm
• Finish: Texture poliuretanic black paint
• Suspension: U bracket system
• Grille: Powder coated perforated steel
• Connectors: Black and Red Clamps
