TSM14

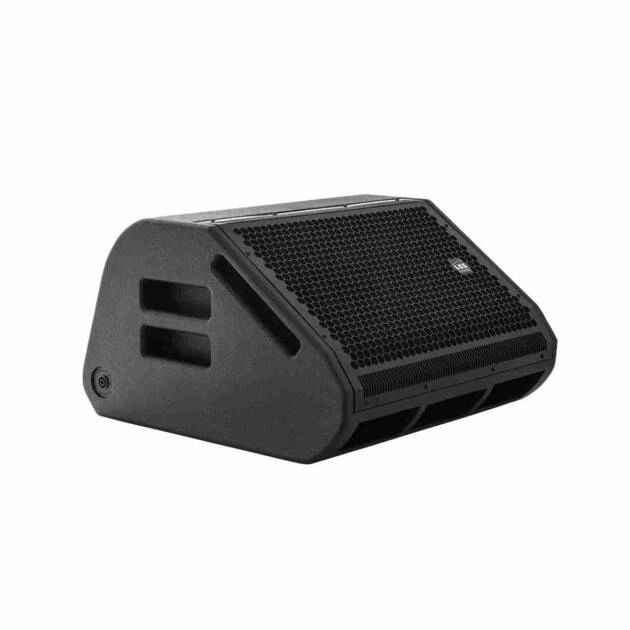

HIGH OUTPUT COAXIAL STAGE MONITOR SPEAKER

Key Features

Speaker Power Capability
• 600W / Peak 2400W (8Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 132dB

Coverage
• 80° (H) x 80°(V)

2-WAY COAXIAL loudspeaker system designed to support the widest possible range of pro audio applications. High output vocal presence and neutral balanced sound, ideal for stage monitor applications.
SKU: TSM14
Product ID: 54057

Application

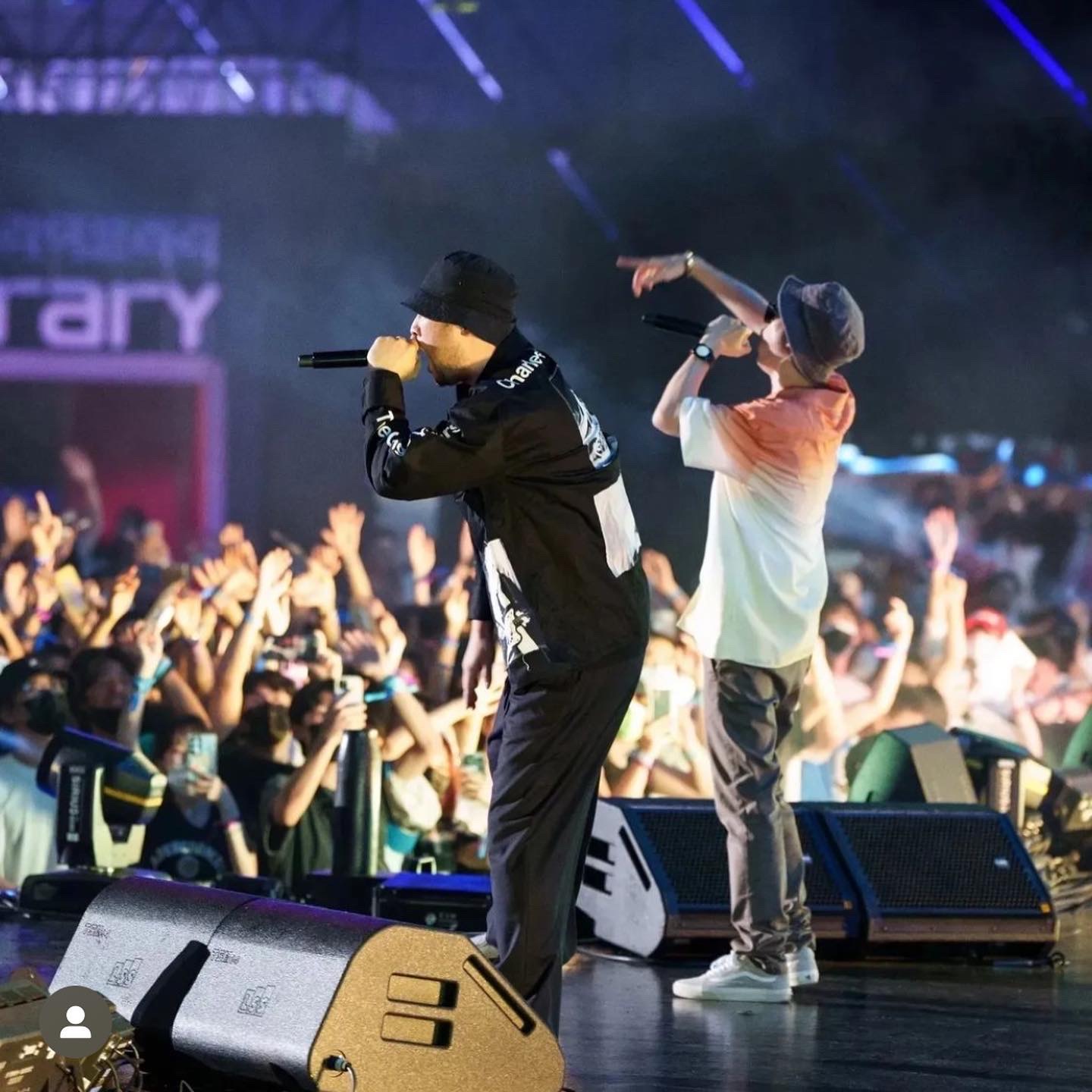

TSM14 is a state of art stage monitor of a very high output The 14” coaxial speaker offer a combination a better low frequency output than a 12- inch, but more balanced midrange performance than a 15-inch. Incredible SPL, exceptional vocal reproduction, and very low frequency reproduction from a small enclosure.Better performance in both touring and permanently installed applications.

LF SECTION: 359 mm (14.13 “) Glass Fiber reinforced low frequency cone, 88 mm (3,5”) Aluminium Winding voice coil, Glass Fiber former, Aluminium demodulating ring, double silicone spider, Neodymium ring magnetHF section:75 mm (3”) voice coil, Pure Titanium Diagram, Aluminiumwinding,kaptonformer.LSS’s advanced crossover includes professional protection of HF.

Performance

Frequency Response
• ±5 dB 80Hz to 18KHz
• -10 dB 40Hz

Speaker Power Capability
• 600W / Peak 2400W

Sensitivity(@ 1m)
• MAX SPL(Calculated) 132dB

Driving Impedance (Ohms)
• Full Range Passive 8Ω

Coverage
• 80° (H) x 80°(V)

Physical

Dimensions mm (±1 mm)
• 350(H) x 580(W) x 570(D)mm

Weights
• Net Weight 22kg
