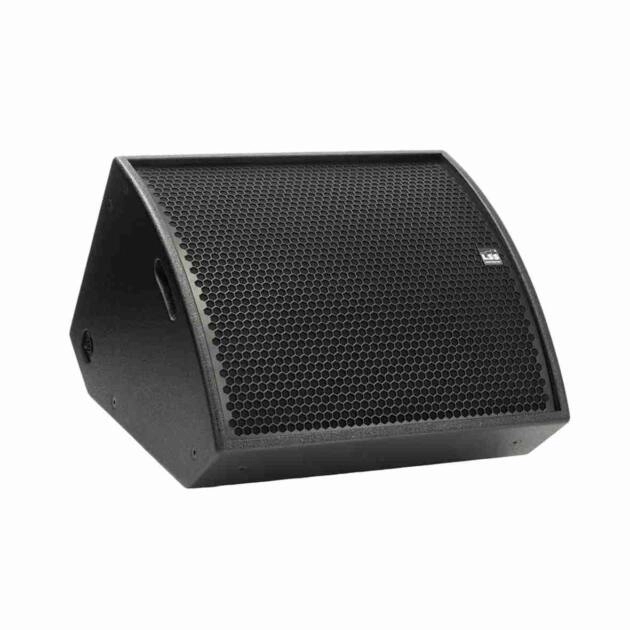

WM3

LOW PROFILE STAGE MONITOR SPEAKER

Key Features

Speaker Power Capability
• 600W / Peak 2400W (8Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 131dB

Coverage
• 60° (H) x 40°(V)

2-way loudspeaker system provides high output, low distortion sound reinforcement for the entire range of pro audio applications.
SKU: WM3
Product ID: 54055

Application

The 380 mm (15″) low frequency cone with 76 mm (3″) voice coil and 75 mm (3″) voice coil high frequency compression driver provides higher output and lower distortion plus enhanced power handling capabilities for better performance in both touring applications. LSS’s advanced crossover included professional protection of HF. The WM3 offers a switchable powering mode: passive operation using the internal crossover filter network or bi-amplified operation.
The WM3 was designed to support the widest possible range of pro audio applications. Is ideal for stage monitoring applications high output vocal presence and neutral balanced sound . The pole mount cup provide front or side fill for concert touring applications. The comprensive system mounting points permit safe, suspension in permanent installations.

• 15″ coax trasducer in vented enclosure
• Neodymium magnet
• Fly mounting points and pole mount cup included
• Powering mode full range passive or BI-AMP (passive MF/HF)
• For portable use or permanent installation

Performance

Frequency Response
• ±5 dB 50Hz to 18KHz
• -10 dB 40Hz

Speaker Power Capability
• 600W / Peak 2400W

Sensitivity(@ 1m)
• 98dB / MAX SPL(Calculated) 134dB

Nominal Input Impedance (Ohms)
• Full Range Passive 8Ω
• LF 8
• HF 8

Coverage
• 60° (H) x 40°(V)

ADDITIONAL_DATA
Product Series WM
• LF Subsystem & Loading One 380 mm (15″) coax woofer vented
• HF Subsystem & Loading One 75 mm (3″) exit/72 mm (2.8″) coax voice coil
• Crossover two-way 12/12 dB
• Sistem Protection HF
• Operating Mode Passive or BI-AMP (passive LF/HF)

Physical

Dimensions mm (±1 mm)
• 410(H) x 600(W) x 600(D)mm

Weights
• Net Weight 23kg

Enclosure Material
• Enclosure material Birch Plywood of 18mm
• Finish Texture poliuretanic black paint
• Suspension 6 point mounting suspension
• Grille Poweder coated perforated steel with anti-dust foam
• Connectors Two Neutrik NL4 speakon
• Optional Accessories Fly clip with ring. flight case for 2 WM3
