MM1

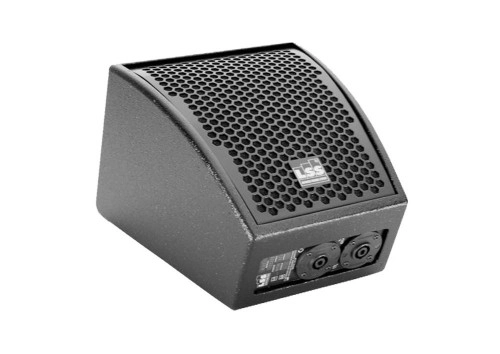

ULTRA LOW PROFILE STAGE MONITOR SPEAKER

Key Features

Speaker Power Capability
• 150W / Peak 600W (8Ω)

Its small size makes it ideal as a personal monitor in the most different applications. Surprising because of the pressure and the natural timbre it that can reproduce.
SKU: MM1
Product ID: 54056

Application

Due to its extremely low profile and small size, fits easily next to any console. Every DJ, Sound Engineer, Performer or keyboard-player will have a faithful companion to share their best performances.
• 6.5″ Coax Neodymium Transducer in Vented Enclosure
• Driver of Polyester Diagramon Exponential horn
• Powering Mode: Full-Range Passive
• For Portable Use or Permanent Installation

Performance

Frequency Response±5 dB 80 Hz to 18 KHz
-10 dB 60 Hz

Speaker Power Capability
• 150W / Peak 600W

Sensitivity(@ 1m)
• MAX SPL(Calculated) 118dB

Nominal Input Impedance (Ohms)
Full Range Passive 8Ω
LF 8
HF8

Coverage
• 70° (H) x 70°(V)

ADDITIONAL DATA
Product Series WM
• LF Subsystem & Loading One 170 mm (6″) woofer vented
• HF Subsystem & Loading One 50 mm (2″) exit/36 mm (1.44″)voice coil
• Crossover 2 way 12/12dB
• System Protection TW Polyswitch
• Operating Mode Passive

Physical

Dimensions mm (±1 mm)
210(H) x 250(W) x 315(D)mm

Weight in
Net Weight 4kg

Enclosure Material
Enclosure Material: Birch Plywood of 12 mm
Finish: Texture Polyurethane Black Paint
Grille: Powder Coated Perforated Steel with anti-dust foam
Connectors: 2 Neutrik NL4 Speakon
Optional Accessories: Speaker Soft Bag
