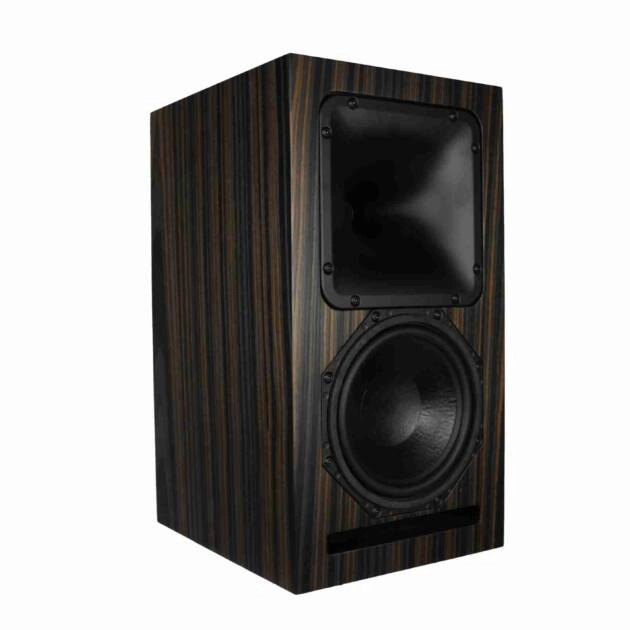

R8

REFERENCE MONITOR MID FIELD SYSTEM

Key Features

• Watts 400+400W 2ways Bi-Amp
• Sensitivity(@ 1m) : 93dB
• Coverage : 60° (H) x 40°(V)

The R8 is a medium size near/mid field passive monitors. Designed for recording studios, broadcast suites and private studios.
The hand built specialy crossover network offers a very efficient and coerent phase passive network. R8 offers an exceptional and accurate response like a sound stage along with the ability to produce a high SPL when required. Four personalized setup avilable from Powersoft syStem amplifier.

COD: R8Categoria: PRO STUDIOProduct ID: 54066

Application

The R8 is a medium size near/mid field passive monitors. Designed for recording studios, broadcast suites and private studios. It utilises a single 8” custom LF driver and 1,75 neodymium HF compression driver of titanium diaphrag on Aluminium DC 60°X 40°Horn. The hand built specialy crossover network offers a very efficient and coerent phase passive network. T8 offers a exceptional and accurate response like a sound stage along with the ability to produce a high SPL when required. Four personalized setup avilable from Powersoft sytem amplifier. The cabinet is from Baltic birch features craftsmanship Every cabinet is coated with a high-tech black textured polywater scratch free finish and custom RAL is possible on request.The system includes mounting hardware for positioning the speakers on optional stands

A01

Compact and powerful class D amplifier providing up to 600W + 600W in 2 channel mode. Excellent sound performance, with a high dynamic range and low distortion, high output power thanks to the latest generation compact PFC power supply, ensuring reliability and fidelity of reproduction in all operating conditions with low power consumption (0.5W in mode stand-by) The DSP controller uses a Devices SigmaDSP 50 MIPS, with 2 input and 3 output channels.Thanks to the 24bit @ 48kHz AD / DA conversion, 118/114 dB of dynamic range, the internal 56-bit processing and a complete library of crossover filters, equalizers and limiters.Supported by Powersoft's ArmoníaPlus control software, it offers quick and easy access to DSP functionality via a simple Ethernet cable, including some proprietary algorithms such as the Frequency Dependent RMS Limiter.The A01 DSP is configured:2 Stereo inputs2 Out Full Range dedicated for R8 speakers1 mono Out for Sub Woofer

Performance

• Frequency Response -10 dB 35 Hz – 22 kHz

• Nominal Dispersion 60° x 40° (H x V)

• Impedance (Nom) 8Ω

• Watts AES Continous 330 W/Peak 825 W

• Sensitivity: 93 dB @ 1 m

• Maximum SPL Output calculated 122 dB SPL

• 2-channel mode

• 4Ω / Ch (balanced) 600W

• Max output voltage 85 Vpeak

• Max output current 31 Apeak

• Power supply Universal, regulated switch mode

• Nominal power requirement AC 100 V - 240 V, 50/60 Hz with PFC

• Operating voltage AC 90 - 264V

• Power factor cos = 0.9 @ 360W

• Gain 26 dB

• Frequency response 20 Hz - 33 kHz ( +0/-1 dB) @ 1 W, 8 Ohm
• S/N ratio 115 dB

• Crosstalk separation 85dB @ 1 kHz

• Input sensitivity @ 8Ω 3 V / 11.7 dBu

• Input impedance 10 kOhm balanced

• THD+N / DIM100 < 0.08% from 0.1 W to full power (typically <0.05%)

• Slew rate 50 V/µs @ 8 Ohm, input filter bypassed

• Damping factor @ 8Ω > 10000 @ 100 Hz

Physical

• Component Low 8” woofer

• Component High 1.75” diaphragm compression driver

• Loading Low Bass-reflex

• Loading High 1” DC Horn

• Connectors BI-WIRING or BI-AMP Binding Post

• Cabinet Material Baltic birch plywood

• Cabinet Finish Black polywater coating

• Dimension : 510(H) x 275(W) x 330(D)mm

• Weight 19kg
