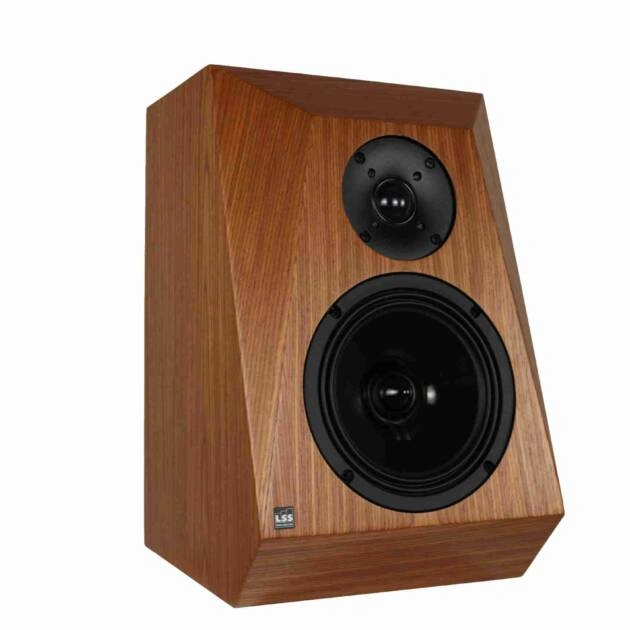

SM1

COMPACT 2-WAY STUDIO MONITOR SYSTEM

Key Features

• Watts 400+400W 2ways Bi-Amp
• Sensitivity(@ 1m) : 93dB
• Coverage : 60° (H) x 40°(V)

SM1 is a precise loudspeaker for near-field sound monitoring. Ultra flat frequency response and physical phase alignment assure a precise preference for pro audio applications.

COD: SM1Categoria: PRO STUDIOProduct ID: 54065

Application

SM1 is a near-field sound monitoring designed to support the widest range of studio monitor applications. Ultra flat frequency response and physical phase alignement assure a precise reference for pro audio applications. SM1 is a 2- way system comprising a 160 mm (6") Ferrite LF, 1.5” voice coil Kapton former, Progressive spider, Rubber surround with DAR technology, a 28 mm (1.1") silk treated soft dome Neodymium HF, 1.1” voice coil aluminium former and flat aluminium wire with additional damping treatment, cooling radiator to reduce power compression and damped rear chamber. LSS’s advanced crossover includes professional protection of HF. Powering mode full range passive with internal crossover filter network, on request Bi-Wiring passive mode.

Performance

• Frequency Response ±5dB 50Hz – 20 kHz

• Sensitivity: 90dB @1m

• Max SPL Calculated : 112dB

• Impedance (Nom) : 8Ω

• Nominal Dispersion : 90° x 90° (H x V)

• Power Handling : 150W

• Peak Power : 600W

• Dimensions : 386(H) x 230(W) x 286(D)mm

• Weight : 8.7kg

Enclosure Material

• Enclosure Material: MDF 60 mm + MDF 20 mm

• Finish: Natural Wood Texture

• Connectors: 1 Neutrik NL4 Speakon

• Optional Accessories: Flight case
