LT60

COMPACT SELF-POWERED SPEAKER

Key Features

Speaker Power Capability
SAT
• 250W / Peak 1000W (4Ω)
SUB
• 350W+350W(4preset stored)

Quality innovation and versatility. This is a summary of the new system developed by LSS for professional sound users.
SKU: LT60
Product ID: 2382

Application

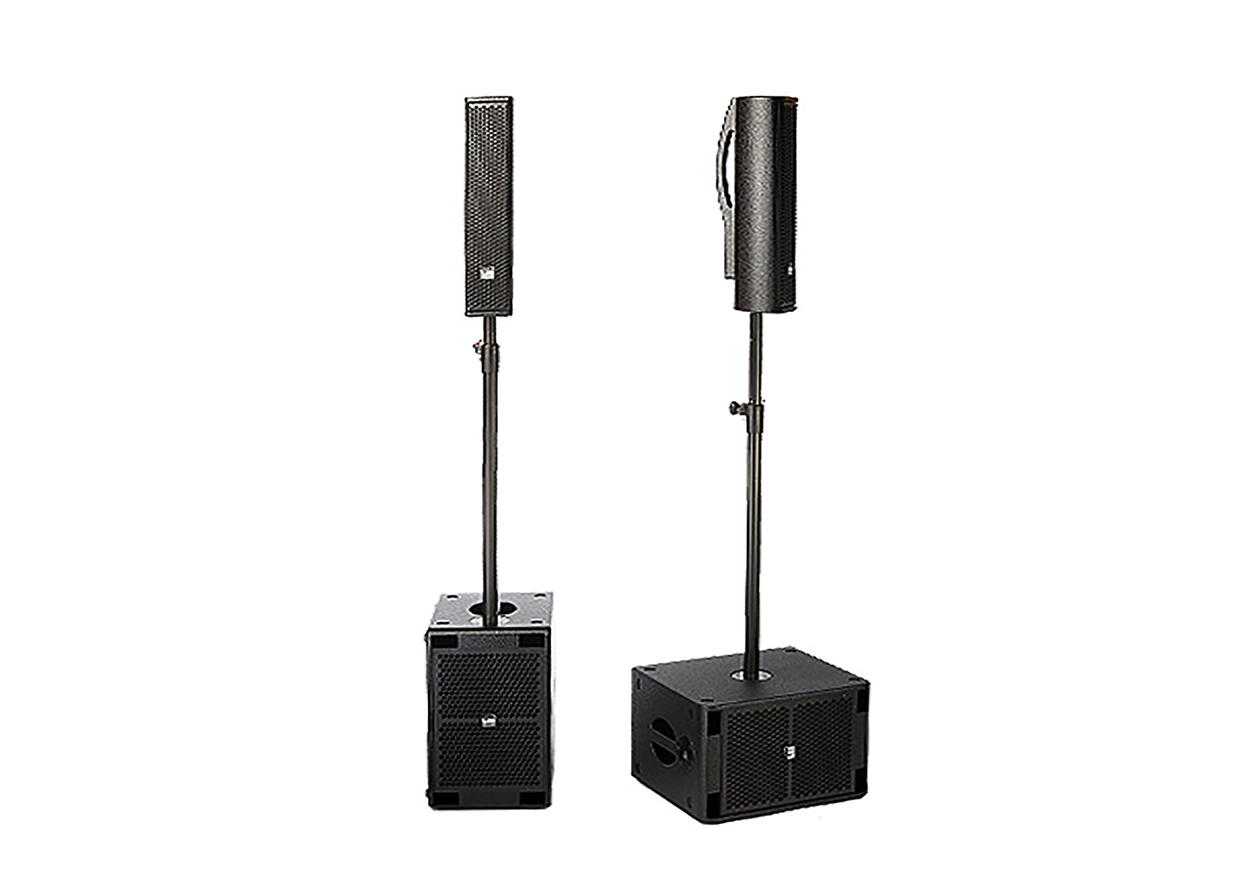

Advanced solutions: self-powered system with digital module DSP by Powersoft, extreme ruggedness, easy of transport and use of professional components. LT60 is a system that uses a subwoofer 250mm (10”) in reflex configuration with integrated digital module, the same has an active output that controls the satellite with 4 customizable presets on request. The subwoofer can be placed in two positions (vertical and horizontal). Thisis very versatile even in areas not easy. The satellite is configured as a mini line array with 4 mid-woofers 100 mm (4”) and 26 mm (1”) waveguide specifically designed for optimal coverage. Impact, natural sound and portability are the strengths of this system. LT60 is provided with wiring kit, soft cases for the transportation and adjustable rod for easy quick coupling to the sub.

• High Power System for Live PA and Any kinf of Portable System
• High Quality Cabinet of Birch Plywood
• Pole Mount Cup Included
• Powering Mode: Self-Powered with Digital Power Module made by Powersoft
• 350 W for SUB and 350 W for the Satellite with stored 4 preset
• For Portable Use or Permanent Installation

Performance

SUB
Frequency Response
±5 dB 50Hz to 120Hz
-10 dB 35Hz

Speaker Power Capability
• 350W+350W(4preset stored / EIAJ)

Sensitivity(@ 1m)
• 93dB / MAX SPL(Calculated) 132dB

Nominal Input Impedance (Ohms)
• LF Passive 4

Coverage
• 360°(single unit); varies with number of units and configuration

SAT

Frequency Response
• ±5 dB 135 Hz to 20 kHz
• -10 dB 100 Hz

Speaker Power Capability
• 250W / Peak 1000W (4Ω)

Sensitivity(@ 1m)
• 95dB / MAX SPL(Calculated) 128dB

Nominal Input Impedance Ohms)
• Passive 4

Coverage
• 80° (H) x 25°(V)
