OCTO21

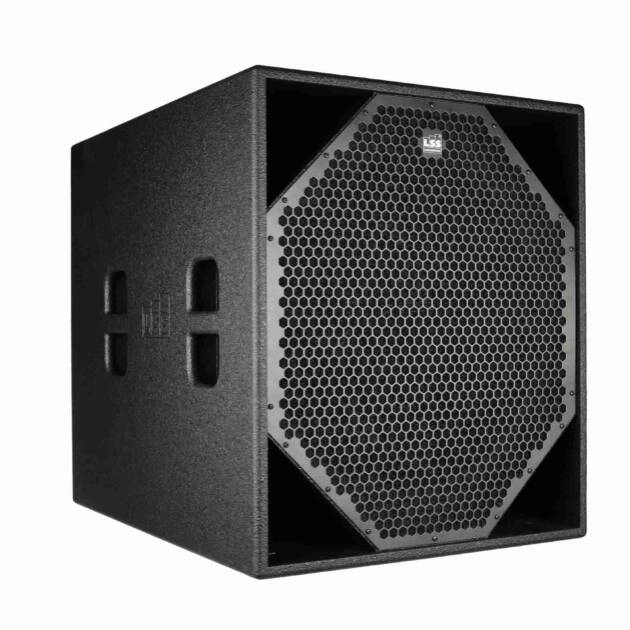

REFLEX SUBWOOFER SPEAKER

Key Features

Speaker Power Capability
• 2000W / Peak 8000W (8Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 136dB

OCTO21 loudspeaker system provides high output, lowdistortion sound reinforcement. It was designed for a wide range of professional applications.
SKU:OCTO18
Product ID: 54052

Application

This system enclosure uses one woofers of 547 mm (21″) very high excursion cone with 150 mm (6″) voice coil and Neodymium magnet structure. This driver is ideal for reproduce very low frequencies. High performance and very high peak output for concert sound. The OCTO21powering mode is only passive amplified operation with external digital processor.High output,bass response and low distortion make the OCTO21 surprising in terms of performance.

OCTO21 is ideal product for bass frequency reinforcement for concert touring applications. LSS OCTO21 is a subwoofer of high peak low frequency response in the range 30-150Hz.

• 21″ Reflex Subwoofer System
• Powering Mode: Passive with external Digital Processor
• For Touring Use or Permanent Installation

Performance

Frequency Response
• ±5 dB 30Hz to 150 Hz
• -10 dB 25Hz

Speaker Power Capability
• 2000W / Peak 8000W

Nominal Input Impedance (Ohms)
• LF 8Ω

Sensitivity(@ 1m)
• MAX SPL(Calculated) 136dB

ADDITIONAL_DATA
Product Series OCTO
• LF Subsystem & Loading 547mm (21″) woofer vented
• Crossover two-way 12/12 dB
• Operating Mode Passive with external digital processor
• Four casters Guitel

Physical

Dimensions mm (±1 mm)
• 700(H) x 600(W) x 800(D)mm

Weights
• Net Weight 70kg

Enclosure Material
• Enclosure material Birch Plywood of 18/30mm
• Finish Texture poliuretanic black paint
• Suspension 6 point mounting suspension
• Grille Poweder coated perforated steel with anti-dust foam
• Connectors Two Neutrik NL4 speakon
