DG118

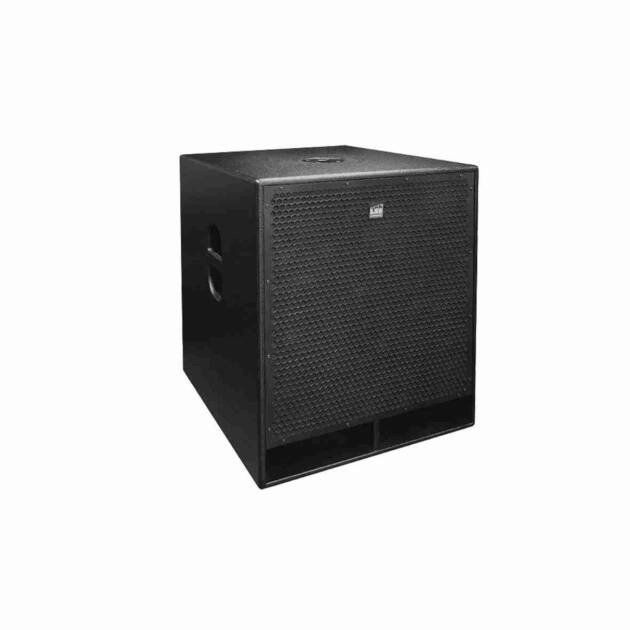

REFLEX SUBWOOFER SPEAKER

Key Features

Speaker Power Capability
• 1500W / Peak 6000W (8Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 136dB

DG118 loudspeaker system provides high output, low distortion sound reinforcement. This system was designed for a wide range of professional applications.
SKU: DG118
Product ID: 54050

Application

The 460 mm (18″) low frequency woofer with 100 mm (4″) voice coil provides higher performance and very high peak output for small concert sound. The DG118 powering mode is only passive amplified operation with external digital processor.
DG118 is a reflex subwoofer dedicated for portable applications or small fixed installations. DG118 is ideal to support bass reinforcement of DG300.

• 460 mm reflex woofer
• Powering mode passive with external digital processor
• Pole mount cup included
• For portable use or permanent installation

Performance

Frequency Response
• ±5 dB 35 Hz to 150 Hz
• -10 dB 30 Hz

Speaker Power Capability
• 1500W / Peak 6000W

Nominal Input Impedance (Ohms)
• LF 8Ω

Sensitivity(@ 1m)
• MAX SPL(Calculated) 136dB

ADDITIONAL_DATA
Product Series DG
• LF Subsystem & Loading One 460 mm (18″) woofer vented
• Operating Mode Passive with external digital processor

Physical

Dimensions mm (±1 mm)
•660(H) x 590(W) x 600(D)mm

Weights
• Net Weight 44kg

Enclosure Material
• Enclosure material Birch Plywood of 15mm
• Finish Texture poliuretanic black paint
• Suspension 6 point mounting suspension
• Grille Poweder coated perforated steel with anti-dust foam
• Connectors Two Neutrik NL4 speakon
