PSUB1

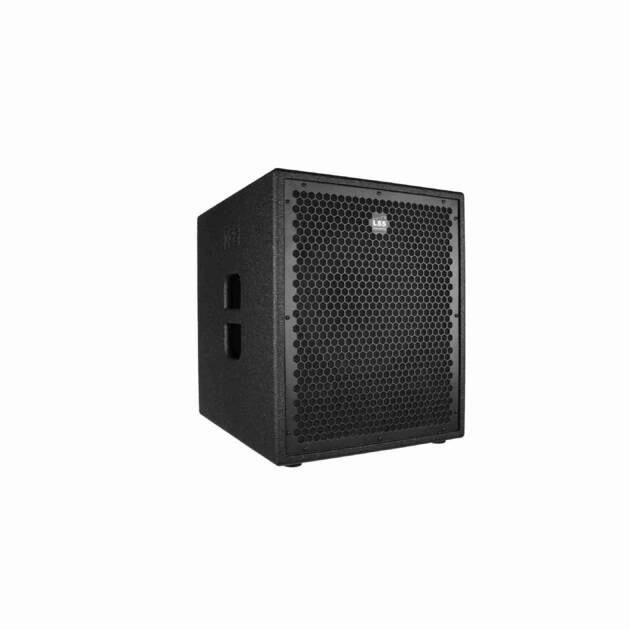

COMPACT REFLEX SUBWOOFER SPEAKER

Key Features

Speaker Power Capability
• 1200W / Peak 4800W (8Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 135dB

PSUB1 loudspeaker system provides high output, low distortion sound reinforcement. This system was designed for a wide range of professional applications.
SKU: PSB1
Product ID: 54049

Application

PSUB1 loudspeaker system provides high output, low distortion sound reinforcement. This system was designed for a wide range of professional applications. The 380 mm (15″) low frequency woofer with 100 mm (4″) voice coil provides higher performance and very high peak output for small concert sound. The PSUB1 powering mode is only passive amplified operation with external digital processor.
PSUB1 is a reflex subwoofer dedicated for portable applications or small fixed installation.

• 380 mm LF SUBWOOFER
• Powering mode passive with external crossover
• Pole mount cup included

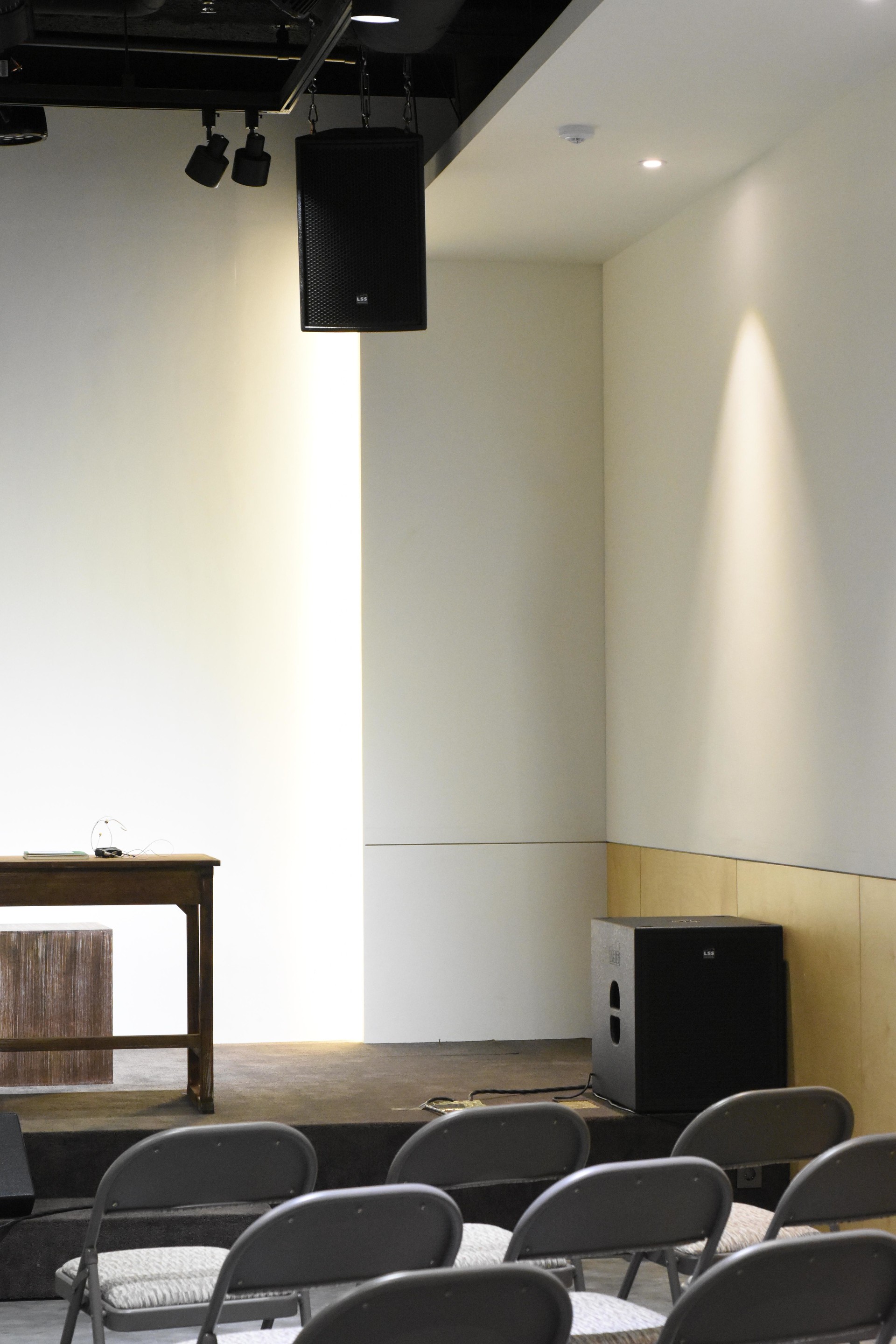

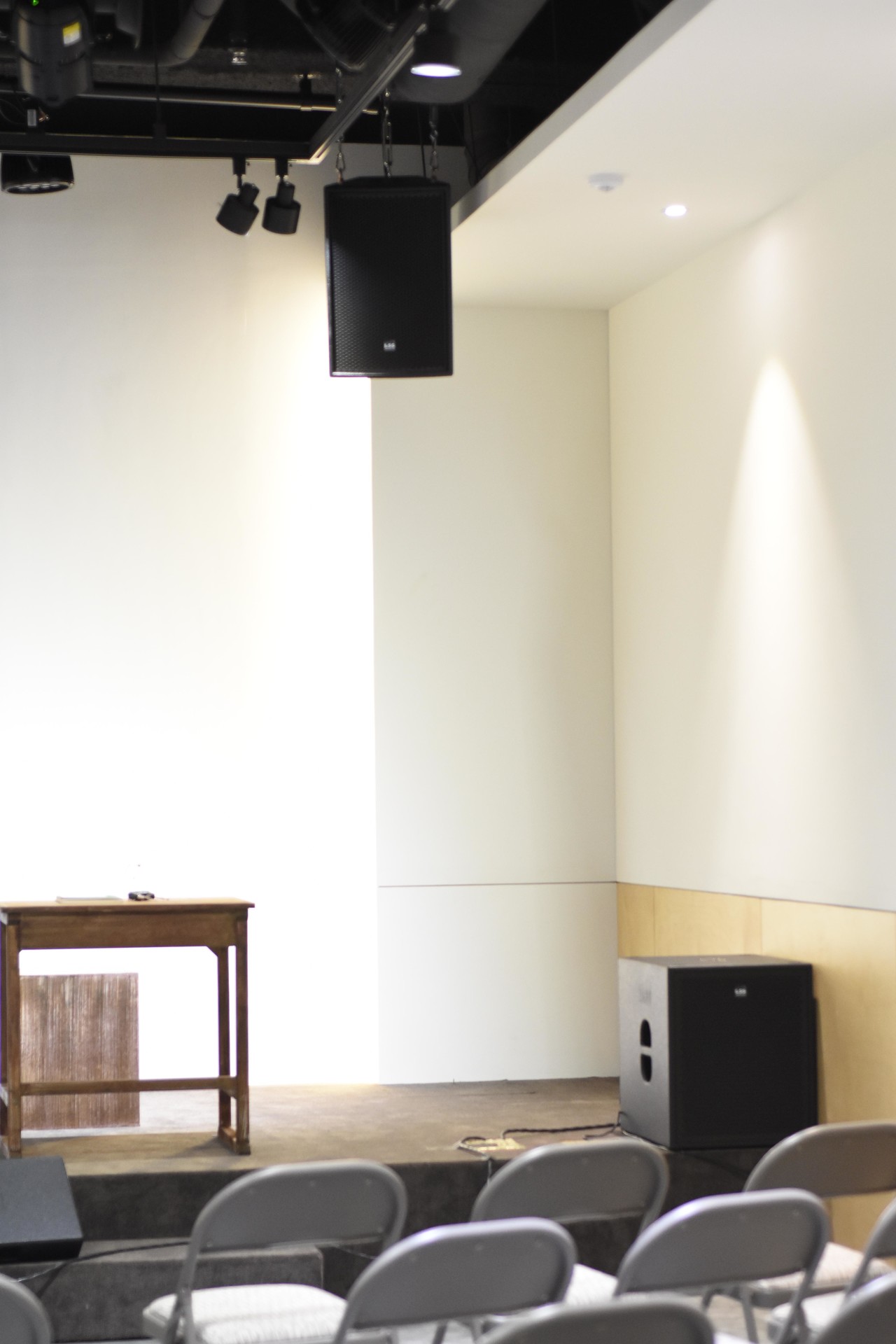

• For portable use or permanent installation

Performance

FreqFrequency Response
• ±5 dB 40Hz to 150Hz
• -10 dB 35 Hz

Speaker Power Capability
• 1200W / Peak 4800W

Nominal Input Impedance (Ohms)
• Full Range Passive 8Ω

Sensitivity(@ 1m)
• MAX SPL(Calculated) 135dB

ADDITIONAL DATA
Product Series PSUB
• LF Subsystem & Loading One 380mm woofer vented
• Operating Mode Passive with external crossover

Physical

Dimensions mm (±1 mm)
• Height 40(H) x 450(W) x 550(D)mm

Weights
• Net Weight 35kg

Enclosure Material
• Enclosure material Birch Plywood of 18mm
• Finish Texture poliuretanic black paint
• Grille Poweder coated perforated steel
• Connectors Two Neutrik NL4 speakon
