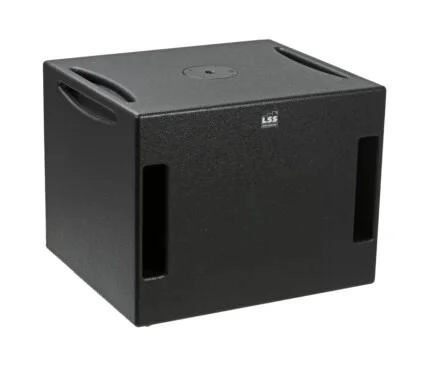

SUBDRIVE12

COMPACT REFLEX SUBWOOFER SPEAKER

Key Features

Speaker Power Capability
• 1000W / Peak 4000W (8Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 130dB

SUBDRIVE12 is a reflex sub woofer designed to reinforce the extremely low range frequency of small portable equipment.
SKU: SBDRV12
Product ID: 54048

Application

The Cabinet extremely compact makes it easily transportable and versatile for portable applications. SUBDRIVE12 surprise for his big punch and high dynamic response and the extreme low frequency.
UBDRIVE12 is a reflex subwoofer that using a loudspeaker from 320 mm (12″) with neodymium magnet and fiberglass coil of 100mm (4″). Low distortion and high dynamic distinguishes this product. The cabinet is constructed from Birch plywood with 15 mm anti stratch Black polyuretane finish.

Performance

Frequency Response
±5 dB 50 Hz to 180 Hz
-10 dB 40 Hz

Speaker Power Capability
• 1000W / Peak 4000W

Nominal Input Impedance (Ohms)
LF Passive 8Ω

Sensitivity(@ 1m)
• MAX SPL(Calculated) 130dB

Physical

Dimensions mm (±1 mm)
• 400(H) x 520(W) x 450(D)mm

Weights
• Net Weight 25kg

Enclosure material
• Enclosure material BIRCH PLYWOOD of 15mm
• Finish Texture poliuretanic black paint
• Connectors 2 Neutrik NL4 Speakon
