PULCEW

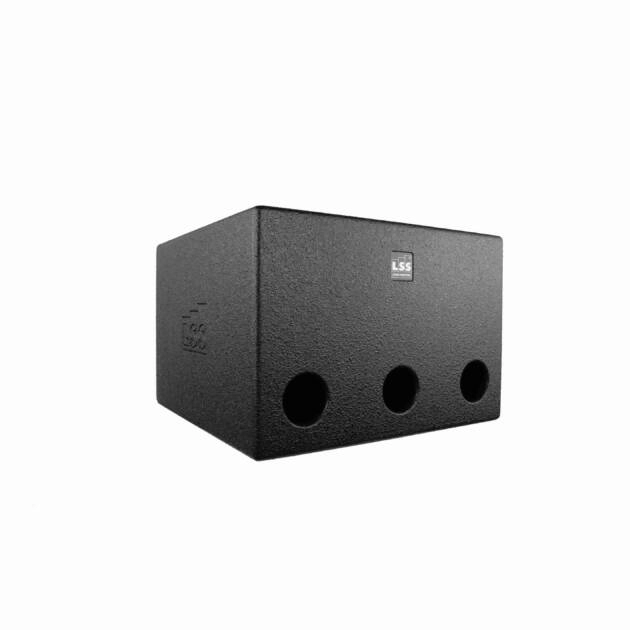

COMPACT STEREO SUBWOOFER SPEAKER

Key Features

Speaker Power Capability
• 160W / Peak 640W (8Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 118dB

PULCEW EQ is a stereo subwoofer loudspeaker high output, low distortion that provides response in the 40 – 180Hz range.
SKU:PLCW
Product ID: 54045

Application

PULCEW uses two 160mm  (6″) low frequency cone with 38 mm (1.5″) voice coil for better performance in permanently installed applications. PULCEW offer passive powering mode, band pass mechanical filter and the internal crossover network for satellite out. PULCEW performs well with PULCE loudspeakers to form full-range reproduction systems, and is also compatible with other LSS small mid-high loudspeakers.
PULCEW is a stereo subwoofer and was designed to support bass reinforcement of PULCE or SP110 LSS loudspeaker in permanent installations.

• Two 160 mm LF in band pass vented enclosure
• Powering mode LF passive
• For permanent installation

Performance

Frequency Response
• ±5 dB 40 Hz to 180 Hz
• -10 dB 30 Hz

Speaker Power Capability
• 160W / Peak 640W

Sensitivity(@ 1m)
• MAX SPL(Calculated) 118dB

Nominal Input Impedance (Ohms)
• LF 8+8Ω

ADDITIONAL_DATA
Product Series PULCE
• LF system & Loading Two 160 mm (6″) woofer band pass
• Crossover 6dB
• Operating Mode Passive

Physical

Dimensions mm (±1 mm)
• 270(H) x 400(W) x 400(D)mm

Weights
• Net Weight 10.4kg
• Shipping Weight 12

Enclosure Material
• Enclosure material: MDF of 12mm
• Finish: Texture poliuretanic black paint
•Connectors: Black and Red Clamps or two Neutrik NL4 speakon
