LCR15

MAIN CINEMA SYSTEM

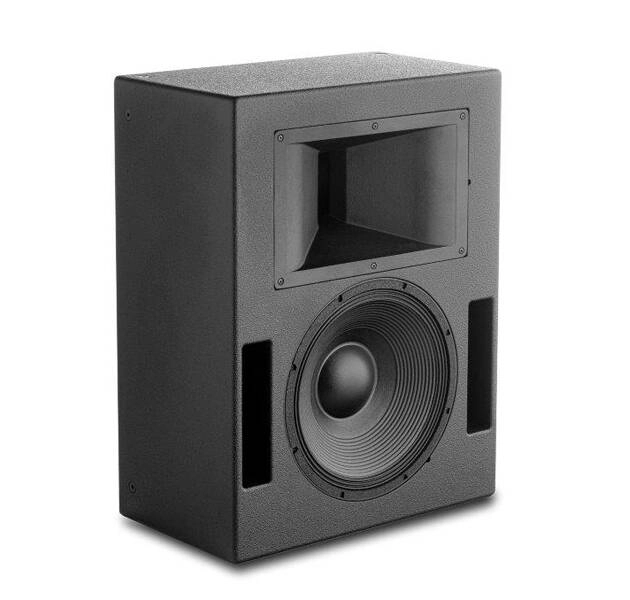

LCR15 is a two-way high performance speaker systems especially designed for the screen channel in small/medium size cinema hall with very short space available between screen and rear wall.

COD: LCR15

Categoria: CINEMA SYSTEM

Product ID: 54073

Application

LCR15 is a two-way high performance speaker systems especially designed for the screen channel in small/medium size cinema hall with very short space available between screen and rear wall. These speaker systems feature one extra-flat reflex technology bass cabinet with one 15" woofer and 4"high frequency compression driver with tanium membrane on 2" 90°X40°constant direcvity horn.

Performance

Frequency Response
• 40Hz to 20kHz

Nominal Impedance

• 8Ω

Nominal Power Handling
• LF 1000W / HF 140W

Continuous Power Handling
• LF 2000W / HF 280W

Sensitivity(@ 1m)
• LF 97dB. SPL / HF 110dB. SPL
Crossover Frequency
• from 500Hz Active not included
Coverage
• 90° (H) x 40°(V)

Physical

Dimensions mm (±1 mm)
• 790(H) x 600(W) x 350(D)

Weights
• Net Weight 33kg

Components
• Cabinet : 18mm Birch PLYWOOD
• Woofer 15" : 4"(100mm) voice coil

• HF Driver 4" : 4"(100mm) voice coil

• Aluminium Horn : Constant directivity 90° (H) x 40°(V)
