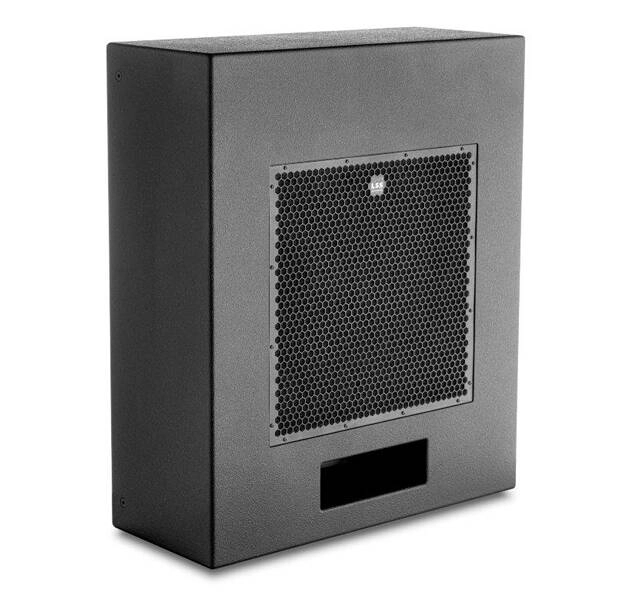

SRS18

SUBWOOFER CINEMA SYSTEM

SRS18 is a new innovative Cinema Rear Screen Sub woofer System that uses a new Custom Speaker Sub Woofer of longer four layer aluminum voice coil. The result is less heat, more energy in the gap, higher sensitvity, higher power handling, lower distorsion and better overall performance.

COD: SRS18

Categoria: CINEMA SYSTEM

Product ID: 54072

Application

SRS18 is a new innovave Cinema Rear Screen Sub woofer System that uses a new Custom Speaker Sub Woofer of longer four layer aluminum voice coil. The result is less heat, more energy in the gap, higher sensivity, higher power handling, lower distoron and beer overall performance. The Voice Coil is of 4 inch diameter (100mm) of Copper Clad Aluminum Wire. With a 1500wa AES power rang, 98 dB sensivity, and over 140mm excursion, this high performace subwoofer is a significant step forward from other models of professional audio market.

Performance

Frequency Response
• 30Hz to 500Hz

Nominal Impedance

• 8Ω

Nominal Power Handling
• 1500W

Continuous Power Handling
• 3000W

Sensitivity(@ 1m)
• 98dB. SPL
Crossover Frequency
•80-100Hz recomended

Physical

Dimensions mm (±1 mm)
• 1000(H) x 840(W) x 350(D)

Weights
• Net Weight 41.5kg

Components
• Cabinet : 18mm Birch PLYWOOD
• Loudspeaker 18" : 4"(100mm) voice coil
