LCR15

SURROUND CINEMA SYSTEM

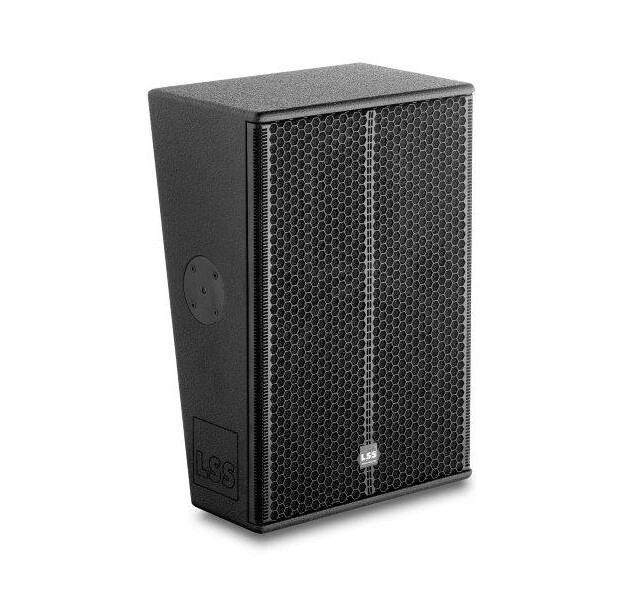

SR02 Cinema Surround Speaker offers high power handling with extended bass response dynamic range required for medium/large format cinemas and multi channel surround formats.

COD: SR2

Categoria: CINEMA SYSTEM

Product ID: 54071

Application

SR02Cinema Surround Speaker offers high power handling with extended bass response dynamic range required for medium/large format cinemas and mul channel surround formats. SR02 is a powerful, 2-way, full range surround comprised of an 12" 320 mm low frequency driver, and a36mm (1.4") voice coil compression driver on 90°x 40°Horn. The cabinet is fied with M-10 threaded points on the back and graduate plate on the sides to facilitate Ubracket mounng not included. SR02 Surround ulizes a steel grill and black polyuretane foam coverto give a very professional appearance and to provide dust protecon.

Performance

Frequency Response
• 50Hz to 20kHz

Nominal Impedance

• 8Ω

Nominal Power Handling
• 400W

Peak Power
• 1600W

Sensitivity(@ 1m)
• 98dB. SPL
Crossover Frequency
•passive included
Coverage
• 90° (H) x 40°(V)

Physical

Dimensions mm (±1 mm)
• 640(H) x 430(W) x 290(D)

Weights
• Net Weight 18.5kg

Components
• Cabinet : 18mm Birch PLYWOOD
• Woofer 12" : 2"(50mm) voice coil

• HF Driver 1" : 1/4"(36mm) voice coil

• Plastic Horn : Constant directivity 90° (H) x 40°(V)
