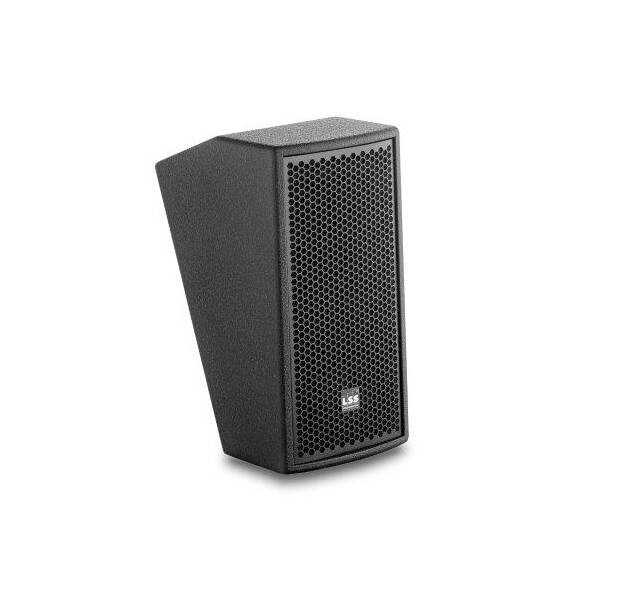

SR01

SURROUND CINEMA SYSTEM


SR01 Cinema Surround Speaker offers high power handling with extended bass response dynamic range required for small/medium format cinemas and multi channel surround formats. SR01 is a powerful, 2-way, full range surround comprised of an 8″.


COD: SR1

Categoria: CINEMA SYSTEM

Product ID: 54045

Performance

Frequency Response
• 60Hz to 20kHz

Nominal Impedance

• 8Ω

Nominal Power Handling
• 300W

Continuous Power Handling
• 600W

Sensitivity(@ 1m)
• 96dB. SPL
Crossover Frequency
•passive included
Coverage
• 90° (H) x 90°(V)

Physical

Dimensions mm (±1 mm)
• 500(H) x 245(W) x 335(D)

Weights
• Net Weight 10kg

Components
• Cabinet : 15mm Birch PLYWOOD
• Woofer 8" : 2"(50mm) voice coil

• HF Driver 1" : 1"(25mm) voice coil

• Plastic Horn : Constant directivity 90° (H) x 90°(V)

SR01

SURROUND CINEMA SYSTEM


SR01 Cinema Surround Speaker offers high power handling with extended bass response dynamic range required for small/medium format cinemas and multi channel surround formats. SR01 is a powerful, 2-way, full range surround comprised of an 8″.


COD: SR1Categoria: CINEMA SYSTEMProduct ID: 54045


Application

SR01Cinema Surround Speaker offers high power handling with extended bass response dynamic range required for small/medium format cinemas and mul channel surround formats. SR01 is a powerful, 2-way, full range surround comprised of an 8" 200 mm low frequency driver, and a1" 25mm, voice coil compression driver on 90°x 90°Horn. The cabinet is fied with M-10 threaded points on the top and on the sides to facilitate U-bracket mounng included. SR01 Surround ulizes a steel grill and black polyuretane foam coverto give a very professional appearance and to provide dust protecon.


Performance

Frequency Response
• 60Hz to 20kHz


Nominal Impedance

• 8Ω


Nominal Power Handling
• 300W


Continuous Power Handling
• 600W


Sensitivity(@ 1m)
• 96dB. SPL

Crossover Frequency
•passive included

Coverage
• 90° (H) x 90°(V)


Physical

Dimensions mm (±1 mm)
• 500(H) x 245(W) x 335(D)

Weights
• Net Weight 10kg

Components
• Cabinet : 15mm Birch PLYWOOD
• Woofer 8" : 2"(50mm) voice coil

• HF Driver 1" : 1"(25mm) voice coil

• Plastic Horn : Constant directivity 90° (H) x 90°(V)
