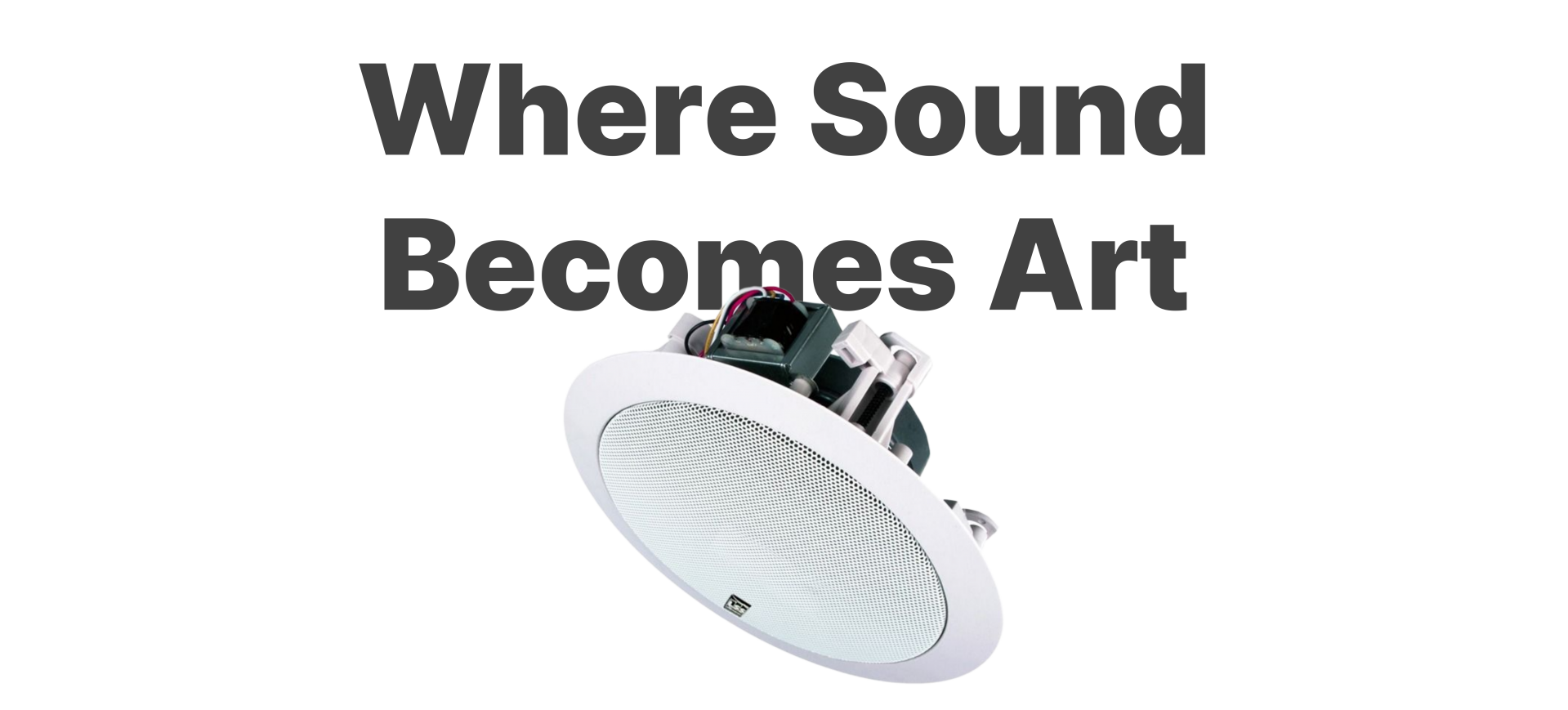

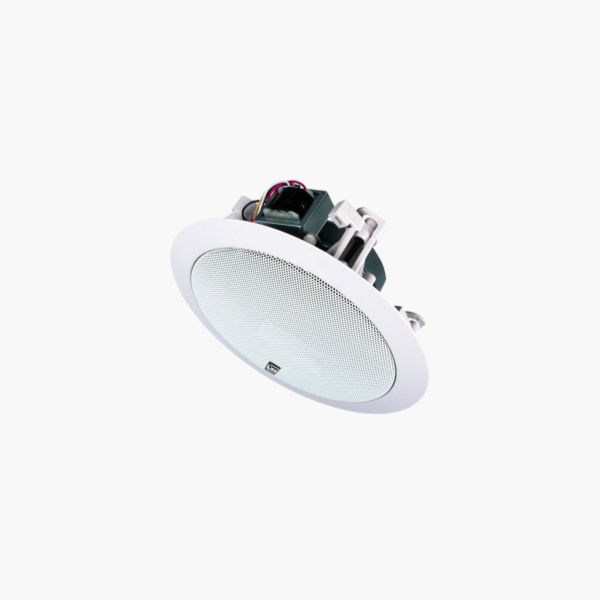

CT5
가장 실감나는 사운드
LSS CT5는 보컬과 음악 재생에 최적화된 프리미엄 천장 매립형 스피커로, 방수 처리된 더블 콘 드라이버를 탑재해 선명하고 균형 잡힌 사운드를 제공합니다. 설치가 간편하며, 카페·매장·회의실 등 다양한 공간에서 고품질 오디오 환경을 완성합니다.
Application
The principal characteristics that countersign this product are: 130 mm (5″) double cone driver with waterproofed membrane to exponential profile, low distorsion, extremely linear frequency response in vocal range, elevated dispersion, coated painted steel grille, easy fixing with soft of torsion in inox steel for ceiling. CT5 uses a line transformer to three positions for fittings to constant voltage.

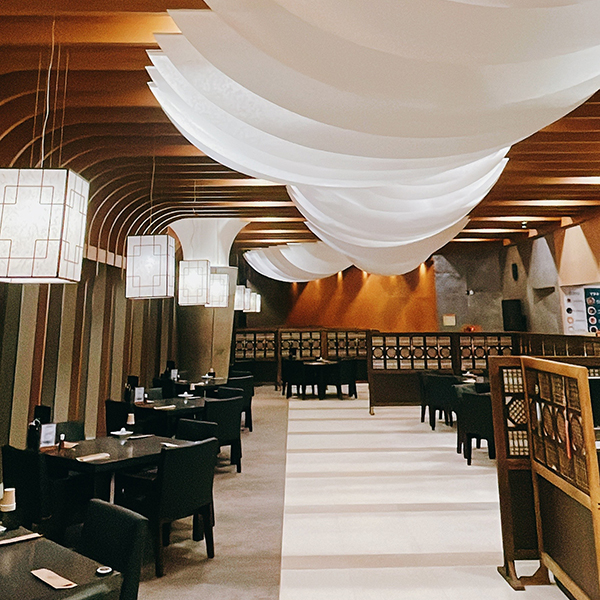

The CT5 ceiling speaker was designed for fixed installation support music and paging reproduction in restaurants, hotels, bars, commercials centre, etc.
• Exceptional Voice & Music reproduction
• Sound Pres. Level (SPL)1M,1W 88dB
• Transformer power taps 20-10-5 Watt
• 5″ full range 8 Ohm speaker
• Powering mode full range passive
• For permanent installation
Performance
Frequency Response
• ±5 dB 100Hz to 20KHz
• -10 dB 70Hz
Speaker Power Capability
• 20W / Peak 80W (8Ω)
Sensitivity(@ 1m)
• 88dB / MAX SPL(Calculated) 110dB
Driver Impedance (Ohms)
• 8
Trasformer tappings 100 Volt line
• Watts 20-10-5
Coverage
• 100° (H) x 100°(V)
ADDITIONAL_DATA
Product Series CT
• Operating Mode Full range with trasformer 20-10-5 W
Physical
Dimensions mm (±1 mm)
• 202(W) x 87(D)
Weights
• Net Weight 1.5kg
Construction Material
• Plastic Baffle, Metal Drive Chassis, Metal Grille
• Finish White
• Connectors Multi Clamps
