Key Features
Speaker Power Capability
• 800W / Peak 2000W (8Ω)
Sensitivity(@ 1m)
• MAX SPL(Calculated) 132dB
Coverage
• 80° (H) x 60°(V)

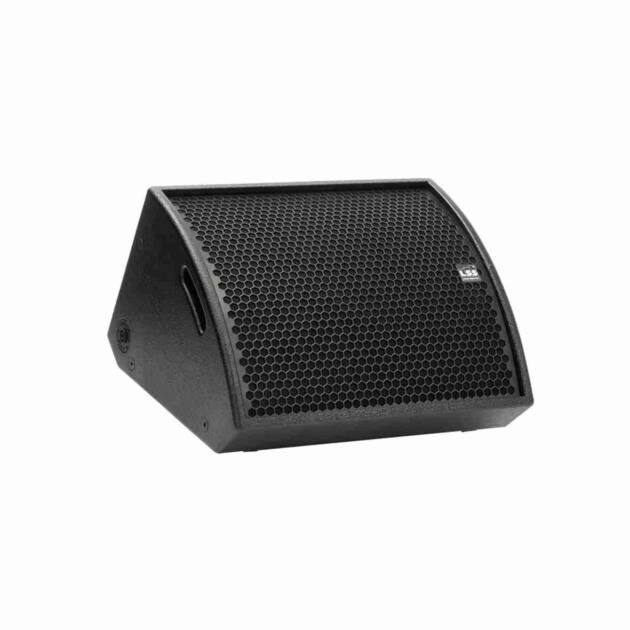

Magma14 is revolutionary 14″ multi-function loudspeakers ideally for mobile and fixed installation applications, especially where high SPL is needed. Magma can be used for main PA system or as a floor monitor.
SKU: M14 Product ID: 54041
Application
The 300 mm (12″) low frequency cone with 75 mm (3″) voice coil and 72 mm (2.8″) voice coil high frequency compression driver with modified exponential rotable horn with controlled coverage provides higher output and lower distortion plus enhanced power handling capabilities for better performance in both touring applications. LSS’s advanced crossover included professional protection of HF. The WM2 offers a switchable powering mode: passive operation using the internal crossover filter network or bi-amplified operation.
The WM2 was designed to support the widest possible range of pro audio applications. It is ideal for stage monitoring applications high output vocal presence and neutral balanced sound . The pole mount cup provide front or side fill for concert touring applications. The comprehensive system mounting points allows safe suspension in permanent installations.
• 12″ coax trasducer in vented enclosure
• Neodymium magnet
• Fly mounting points and pole mount cup included
• Powering mode full range passive or BI-AMP (passive MF/HF)
• For portable use or permanent installation
Performance
Frequency Response
• ±5 dB 65Hz to 18KHz
• -10 dB 50Hz
Speaker Power Capability
• 600W / Peak 1800W
Sensitivity(@ 1m)
• MAX SPL(Calculated) 131dB
Nominal Input Impedance (Ohms)
• Full Range Passive 8Ω
Coverage
• 60° (H) x 40°(V)
ADDITIONAL DATA
Product Series WM
• LF Subsystem & Loading One 300 mm (12″) coax woofer vented
• HF Subsystem & Loading One 75 mm (3″) exit/72 mm (2.8″) coax voice coil
• Crossover two-way 12/12 dB
• Sistem Protection HF
• Operating Mode Passive or BI-AMP (passive LF/HF)
Physical
Dimensions mm (±1 mm)
• 315(H) x 500(W) x 485(D)mm
Weights
• Net Weight 16.5kg
Enclosure Material
• Enclosure material Birch Plywood of 15 mm
• Finish Texture poliuretanic black paint
• Suspension 6 point mounting suspension
• Grille Poweder coated perforated steel with anti-dust foam
• Connectors Two Neutrik NL4 speakon
•Optional Accessories Fly clip with ring, Flight case for 2 WM2
Key Features
Speaker Power Capability
• 800W / Peak 2000W (8Ω)
Sensitivity(@ 1m)
• MAX SPL(Calculated) 132dB
Coverage
• 80° (H) x 60°(V)
Magma14 is revolutionary 14″ multi-function loudspeakers ideally for mobile and fixed installation applications, especially where high SPL is needed. Magma can be used for main PA system or as a floor monitor.
SKU: M14 Product ID: 54041
Application
The 300 mm (12″) low frequency cone with 75 mm (3″) voice coil and 72 mm (2.8″) voice coil high frequency compression driver with modified exponential rotable horn with controlled coverage provides higher output and lower distortion plus enhanced power handling capabilities for better performance in both touring applications. LSS’s advanced crossover included professional protection of HF. The WM2 offers a switchable powering mode: passive operation using the internal crossover filter network or bi-amplified operation.
The WM2 was designed to support the widest possible range of pro audio applications. It is ideal for stage monitoring applications high output vocal presence and neutral balanced sound . The pole mount cup provide front or side fill for concert touring applications. The comprehensive system mounting points allows safe suspension in permanent installations.
• 12″ coax trasducer in vented enclosure
• Neodymium magnet
• Fly mounting points and pole mount cup included
• Powering mode full range passive or BI-AMP (passive MF/HF)
• For portable use or permanent installation
Performance
Frequency Response
• ±5 dB 65Hz to 18KHz
• -10 dB 50Hz
Speaker Power Capability
• 600W / Peak 1800W
Sensitivity(@ 1m)
• MAX SPL(Calculated) 131dB
Nominal Input Impedance (Ohms)
• Full Range Passive 8Ω
Coverage
• 60° (H) x 40°(V)
ADDITIONAL DATA
Product Series WM
• LF Subsystem & Loading One 300 mm (12″) coax woofer vented
• HF Subsystem & Loading One 75 mm (3″) exit/72 mm (2.8″) coax voice coil
• Crossover two-way 12/12 dB
• Sistem Protection HF
• Operating Mode Passive or BI-AMP (passive LF/HF)
Physical
Dimensions mm (±1 mm)
• 315(H) x 500(W) x 485(D)mm
Weights
• Net Weight 16.5kg
Enclosure Material
• Enclosure material Birch Plywood of 15 mm
• Finish Texture poliuretanic black paint
• Suspension 6 point mounting suspension
• Grille Poweder coated perforated steel with anti-dust foam
• Connectors Two Neutrik NL4 speakon
•Optional Accessories Fly clip with ring, Flight case for 2 WM2
