Key Features

Speaker Power Capability
• 1500W / Peak 6000W (8Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 136dB

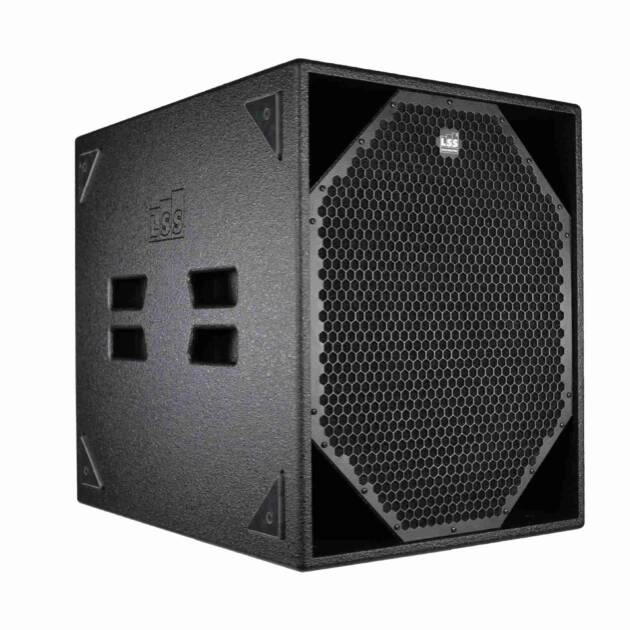

OCTO18 loudspeaker system provides high output, low distortion sound reinforcement. It was designed for a wide range of professional applications.
SKU: OCTO18
Product ID: 54051

Application

This system enclosure uses one woofers of 460 mm (18″) High performance and very high peak output for concert sound. The OCTO18 powering mode is only passive amplified operation with external digital processor. High output,bass response and low distortion make the OCTO18 surprising in terms of performance. The OCT018 is the ideal product to be paired with speakers such as, SP530, SP640,PSAT1,PSAT2,AR210, AR208 or similar. The cabinet configuration allow the vertical and horizontal positioning with cup included. very high excursion cone with 100 mm (4″) voice coil of new Teconology DUAL Split Winding  and Neodymium magnet structure.- This driver is ideal for reproduce very low frequencies.
OCTO18 is ideal product for bass frequency reinforcement for concert touring applications. It is a reflex subwoofer of high peak low frequency response in the range 40-150Hz.

• 460 mm LF SUBWOOFER
• Powering mode passive with external digital processor
• For touring use or permanent installation

Performance

Frequency Response
• ±5 dB 40Hz to 150Hz
• -10 dB 30Hz

Speaker Power Capability
• 1500W / Peak 6000W

Nominal Input Impedance (Ohms)
• LF 8Ω

Sensitivity(@ 1m)
• MAX SPL(Calculated) 136dB

ADDITIONAL_DATA
• Product Series OCTO
• LF Subsystem & Loading 460 mm (18″) woofer vented
• Operating Mode Passive with external digital processor
• Four casters Guitel

Physical

Dimensions mm (±1 mm)
• 640(H) x 520(W) x 700(D)mm

Weights
• Net Weight 52kg

Enclosure Material
• Enclosure material Birch Plywood of 18mm
• Finish Texture poliuretanic black paint
• Grille Powder coated perforated steel with anti-dust foam
• Connectors Two Neutrik NL4 speakon
