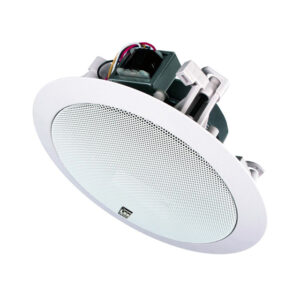

FULL RANGE CEILING SPEAKER
CS5
Invisible Design. Exceptional Sound
천장 속으로 자연스럽게 스며드는 디자인, 공간을 채우는 완성도 높은 사운드.
CS5는 뛰어난 명료도와 균일한 커버리지로 공간 전체에 자연스럽고 균형 잡힌 음향을 제공합니다.
세련된 인테리어와 프로페셔널 오디오 성능을 동시에 만족시키는 프리미엄 씰링 스피커입니다.
Key Features
• 20W / Peak 80W (52Ω)
Sensitivity(@ 1m)
• 93dB / MAX SPL(Calculated) 112dB
Coverage
• 100° (H) x 100°(V)
CS5 is a loudspeaker designed to vocal and music reproduction.
SKU: CS5
Product ID: 54063
Application
The principal characteristics that countersign this product are: 130mm double cone driver with waterproofed membrane to exponential profile, low distorsion, extremely linear frequency response in vocal range, elevated dispersion, coated painted steel grille, easy fixing with soft of torsion in inox steel for ceiling. CS5 uses a high level impedance speaker (52 Ohm nominal), this facilitates and allows the parallel connection on the same line for a maximum of 12 loudspeakers without transformers and constant voltage amplifier.
The CS5 ceiling speaker was designed for fixed installation support music and paging reproduction in restaurants, hotels, bars, commercials centre, etc.
• Exceptional Voice & Music reproduction
• Sound Pres. Level (SPL)1M,1W 93dB
• High Level Impedance
• 5″ full range speaker of 52 Ohm
• Powering mode full range passive
• For permanent installation
Performance
Frequency Response
• ±5 dB 120Hz to 18KHz
• -10 dB 100Hz
Speaker Power Capability
• 20W / Peak 80W (52Ω)
Sensitivity(@ 1m)
• 93dB / MAX SPL(Calculated) 112dB
Driver Impedance (Ohms)
• 52
Coverage
• 100° (H) x 100°(V)
ADDITIONAL_DATA
Product Series CS
• Operating Mode Full range
Physical
Dimensions mm (±1 mm)
• 202.5(W) x 67(D)
Weights
• Net Weight 1.1kg
Construction Material
• Plastic Baffle, Metal Drive Chassis, Metal Grille
• Finish White
•Connectors Fastons
Key Features
• 20W / Peak 80W (52Ω)
Sensitivity(@ 1m)
• 93dB / MAX SPL(Calculated) 112dB
Coverage
• 100° (H) x 100°(V)
CS5 is a loudspeaker designed to vocal and music reproduction.
SKU: CS5
Product ID: 54063
Application
The principal characteristics that countersign this product are: 130mm double cone driver with waterproofed membrane to exponential profile, low distorsion, extremely linear frequency response in vocal range, elevated dispersion, coated painted steel grille, easy fixing with soft of torsion in inox steel for ceiling. CS5 uses a high level impedance speaker (52 Ohm nominal), this facilitates and allows the parallel connection on the same line for a maximum of 12 loudspeakers without transformers and constant voltage amplifier.
The CS5 ceiling speaker was designed for fixed installation support music and paging reproduction in restaurants, hotels, bars, commercials centre, etc.
• Exceptional Voice & Music reproduction
• Sound Pres. Level (SPL)1M,1W 93dB
• High Level Impedance
• 5″ full range speaker of 52 Ohm
• Powering mode full range passive
• For permanent installation
Performance
Frequency Response
• ±5 dB 120Hz to 18KHz
• -10 dB 100Hz
Speaker Power Capability
• 20W / Peak 80W (52Ω)
Sensitivity(@ 1m)
• 93dB / MAX SPL(Calculated) 112dB
Driver Impedance (Ohms)
• 52
Coverage
• 100° (H) x 100°(V)
ADDITIONAL_DATA
Product Series CS
• Operating Mode Full range
Physical
Dimensions mm (±1 mm)
• 202.5(W) x 67(D)
Weights
• Net Weight 1.1kg
Construction Material
• Plastic Baffle, Metal Drive Chassis, Metal Grille
• Finish White
•Connectors Fastons
