Key Features

Speaker Power Capability
• 20W / Peak 80W (8Ω)

Sensitivity(@ 1m)
MAX SPL(Calculated) 107dB

Coverage
• 100° (H) x 100°(V)

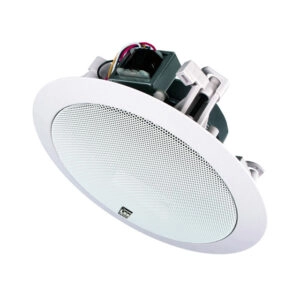

CT5 is a loudspeaker designed to vocal and music reproduction.
SKU: CT5
Product ID: 54064

Application

The principal characteristics that countersign this product are: 130 mm  (5″) double cone driver with waterproofed membrane to exponential profile, low distorsion, extremely linear frequency response in vocal range, elevated dispersion, coated painted steel grille, easy fixing with soft of torsion in inox steel for ceiling. CT5 uses a line transformer to three positions for fittings to constant voltage.
The CT5 ceiling speaker was designed for fixed installation support music and paging reproduction in restaurants, hotels, bars, commercials centre, etc.

• Exceptional Voice & Music reproduction
• Sound Pres. Level (SPL)1M,1W 88dB
• Transformer power taps 20-10-5 Watt
• 5″ full range 8 Ohm speaker
• Powering mode full range passive
• For permanent installation

Performance

Frequency Response
• ±5 dB 100Hz to 20KHz
• -10 dB 70Hz
Speaker Power Capability
• 20W / Peak 80W (8Ω)
Sensitivity(@ 1m)
• 88dB / MAX SPL(Calculated) 110dB
Driver Impedance (Ohms)
• 8
Trasformer tappings 100 Volt line
• Watts 20-10-5
Coverage
• 100° (H) x 100°(V)

ADDITIONAL_DATA
Product Series CT
• Operating Mode Full range with trasformer 20-10-5 W

Physical

Dimensions mm (±1 mm)
• 202(W) x 87(D)
Weights
• Net Weight 1.5kg

Construction Material
• Plastic Baffle, Metal Drive Chassis, Metal Grille
• Finish White
• Connectors Multi Clamps
