Performance

Frequency Response
• ±5 dB 120 Hz to 18 Khz
• -10 dB 100 Hz

Speaker Power Capability
• 500W / Peak 2000W

Sensitivity(@ 1m)
• MAX SPL(Calculated) 131dB

Nominal Impedance (Ohms)
• Full Range Passive 6Ω

Coverage
• 80° (H) x 20°(V)

ADDITIONAL_DATA
• Product Series PP
• FR system & Loading
• Ten 100 mm (4″) loudspeaker in closed box and 25 mm (1″) voice coil cone
• Operating Mode: Full Range Passive

Key Features

Speaker Power Capability
• 500W / Peak 2000W (6Ω)

Sensitivity(@ 1m)
• MAX SPL(Calculated) 131dB

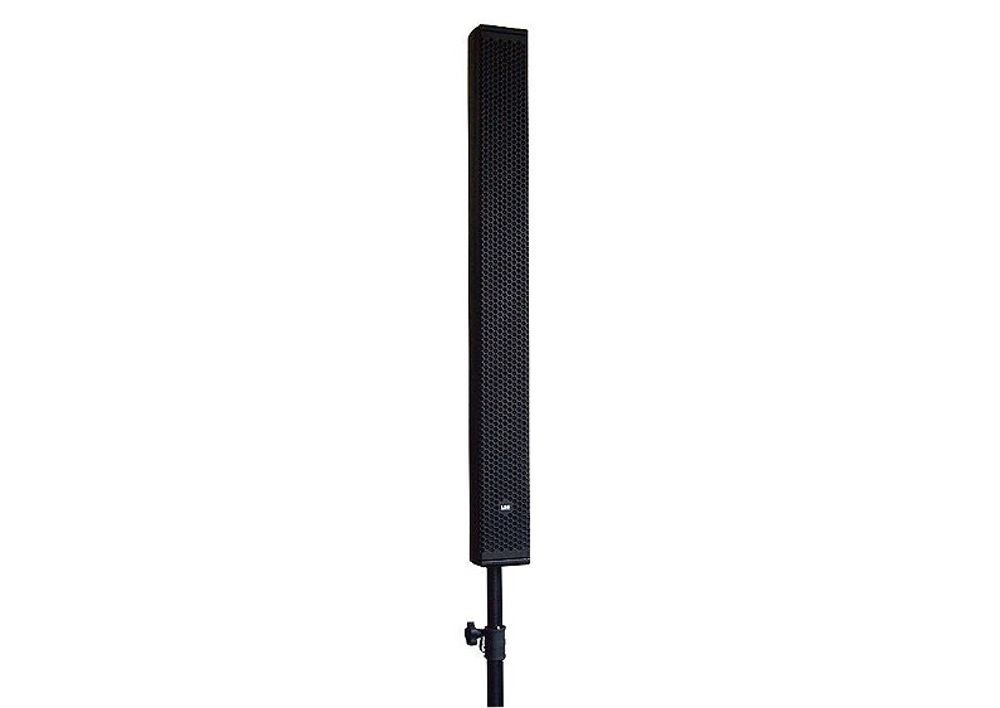

PP4-10 is a columnar model line-array technology with the convenience of ultra compact portable PA’s.
SKU: PP4-10
Product ID: 54032

Application

PP4-10 is ideal for sound reinforcement in A/V events, paging and background music. The small dimensions of system are ideally for portable use. PP4-10 uses 10 full-range speakers of 100 mm (4”) with Neodymium magnet and 25mm (1”) voice coil water-resistant cone. The total nominal impedance is 6 Ohms. The cabinet is sealed enclosure of Birch Plywood of 14 mm and 6 mm curved on side. Despite the ultra-low size PP4-10 surprises in the natural timbre sound.
PP4-10 is ideal for Live Music of One Man Solo or small Bands, the cabinet with comprehensive cup permit easy installation. PP4-10 is ideal for sound reinforcement in A/V events, paging and background Music.

• 10 X 4″ Full Range Neodymium Driver
• High Quality System for Musicians for Live Music
• Low Distortion, Maximum Intelligibility
• Museum & Exhibition especially for Reverberate Halls
• Custom Color Available
• Flexible Mounting Options for Easy Installation Included
• Powering Mode: Full-Range Passive
• For Portable or Permanent Installation

Physical

Dimensions mm (±1 mm)
• 1130(H) x 125(W) x 144(D)mm

Weights
• Net Weight 9.5kg

Enclosure Material
• Enclosure material: Birch Plywood of 14 mm and 6 mm on side
• Finish Texture: texture poliuretanic black paint
• Grille: Powder coated perforated steel
• Connectors: 2 Neutrik NL4 Speakon
