PP4
Pure Sound. Exceptional Clarity.
PP4는 컴팩트한 디자인 속에 놀라운 음압과 뛰어난 명료도를 담아낸 LSS의 고성능 포인트소스 라우드스피커입니다. 정교한 음향 재생 능력으로 음악과 음성을 자연스럽고 선명하게 전달하며, 다양한 설치 환경에서 일관된 퍼포먼스를 제공합니다. 라이브 공연장, 하우스 오브 워십, 상업 공간 등 프로페셔널 환경을 위한 최적의 솔루션입니다.
LSS PP4
컴팩트한 사이즈
강력한 사운드
LSS PP4는 140×145mm의 초소형 사이즈에도 불구하고
놀라운 음질을 제공하는 프리미엄 풀레인지 스피커입니다.
카페, 매장, 갤러리 등 어떤 공간에도 자연스럽게 어울리며, 작지만 풍부하고 선명한 사운드를 선사합니다.
Application
PP4 comprises a single 100 mm (4”) water-resistant cone driver with 16 Ohms nominal impedance and 25 mm (1”) voice coil mounted in a sealed enclosure of BIRCH PLYWOOD of 14 mm and plywood of 6 mm curved on sides. Despite the ultra-low size 140mm x 145 mm surprises in the natural timbre sound. The cabinet finish can be customized on request.

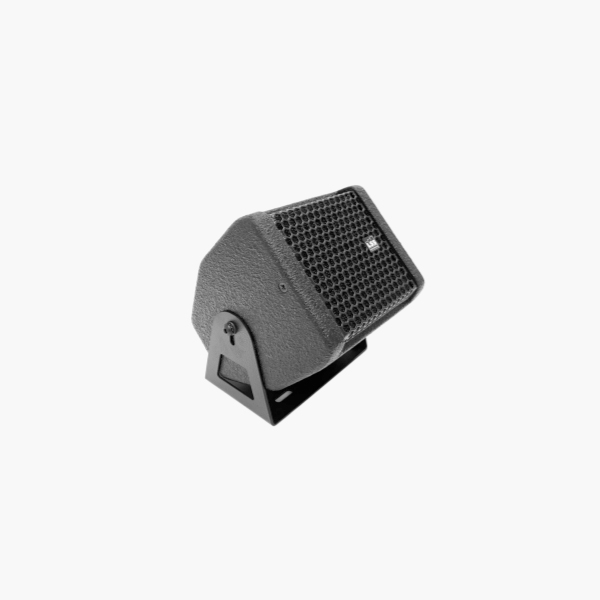

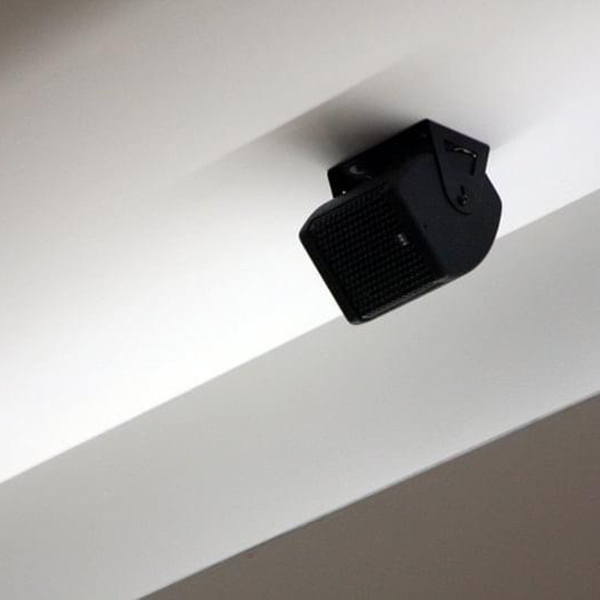

PP4 is ideal for distributed systems, the cabinet with comprehensive U bracket allow easy installation. PP4 is ideal for sound reinforcement in A/V events, paging and background music. The comprehensive system mounting points allows safe suspension in permanent installations.
• Wide-range frequency response speaker
• High-quality distributed systems,paging and music
• Low distortion maximize intelligibility
• Background music systems in restaurants and clubs
• Exhibit audio for museum displays
• Color matching available
• Flexible mounting options ease installation
• For fixed installations
Performance
Frequency Response
• ±5 dB 120Hz to 18kHz
• -10 dB 110Hz
Speaker Power Capability
• 60W / Peak 150W
Sensitivity(@ 1m)
• MAX SPL(Calculated) 112dB
Drivin Impedance (Ohms)
• Full Range Passive 16Ω
Coverage
• 80° (H) x 80°(V)
ADDITIONAL DATA
Product Series PULCE
• FR system & Loading One 100 mm (4″) cone driver and 25 mm (1″) voice coil
• Operating Mode Passive
Physical
Dimensions mm (±1 mm)
• 141(H) x 128(W) x 145(D)mm
Weights
• Net Weight 1.5kg
Enclosure Material
• Enclosure material: BYRCH PLYWOOD of 14 mm
• Finish: Texture poliuretanic black paint
• Suspension: U bracket system
• Grille: Powder coated perforated steel
• Connectors: Black and Red Clamps
